1SDA100425R1 - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB

Expected in 2-4 weeks

1SDA100425R1 - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB - 1

1SDA100425R1 - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB - 2

1SDA100425R1 - XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB

746,35 € excl. VAT

910,55 € incl. VAT

Text About:

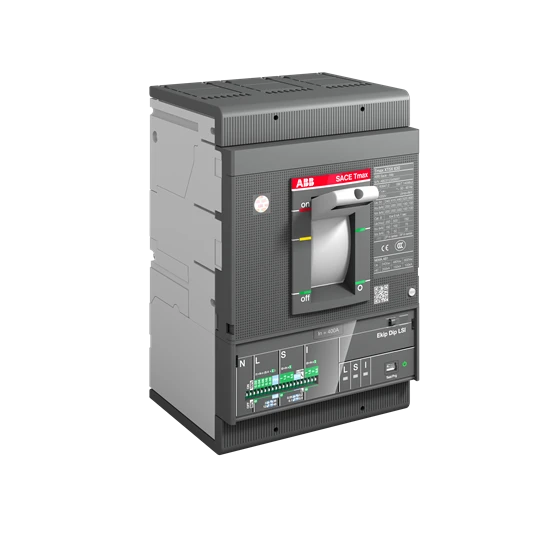

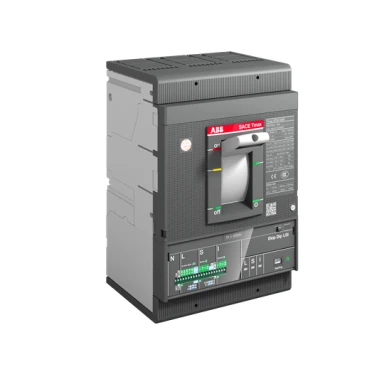

XT5S 630 Ekip Dip LS/I In=630 3p F F - ABB

In cart

910,55 €

SPECIFICATIONS

Additional Information

Data sheet, technical information 1SDC210100D0206

1SDC210099D0206

Eclass V11.1 : 27370409

Package level 1 depth / length 285 mm

EAN 8056221005029

Product net depth / length 103.5
mm

Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Weee category 5. Small Equipment (No External Dimension More Than 50 cm)

Main

Product Name Moulded Case Circuit Breaker

Product type Automatic Circuit Breaker

version F

Complementary

Declaration of conformity - ce 9AKK107680A2824

Package level 1 gross weight 5.308 kg

Product net weight 4.82
kg

[in] rated current 630 A

Cad dimensional drawing 1SDH002065A1115

1SDH002065A1131

Conflict minerals reporting template (cmrt) 9AKK108467A5658

Package level 1 height 245 mm

Product net width 140
mm

[ics] rated service breaking capacity (220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA

Package level 1 units box 1 piece

Package level 1 width 250 mm

Environmental information 9AKK107991A8215

9AKK108467A6707

Instructions and manuals 1SDH002011A1001

Order code us and canada XT5SE363BEFF000XXX

Order multiple 1 piece

Minimum order quantity 1 piece

Product main type SACE Tmax XT

mechanical durability 240 cycles per hour
20000 cycle

Object classification code Q

electrical durability 120 cycles per hour
5000 cycle

Package level 1 ean 8056221005029

Product net height 205
mm

Rated short-time withstand current low voltage (icw) 6 kA

Rated uninterrupted current (iu) 630 A

Rated impulse withstand voltage (uimp) 8 kV

Rated insulation voltage (ui) 1000 V

Power loss 45 W

Release Ekip Dip LS/I

Short-circuit performance level S

Rated operational voltage 690 V AC

Reach declaration 9AKK108466A1425

Sub-type XT5

Poles description 3

Terminal connection type Front

Wiring diagram 1SDM000005A1001

Rated ultimate short-circuit breaking capacity (icu) (220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA

Environment

Circuit breaker type to be associated Power Distribution

Customs tariff number 85362090

Release type EL

Current type AC

ETIM - 8 EC000228 - Power circuit-breaker for trafo/generator/installation protection

Mechanical drawings 1SDH002011A1101

standards IEC

Etim 7 EC000228 - Power circuit-breaker for trafo/generator/installation protection

E-number (finland) 3641346

Rohs information 9AKK108466A1424

Toxic substances control act - tsca 9AKK108467A8326
