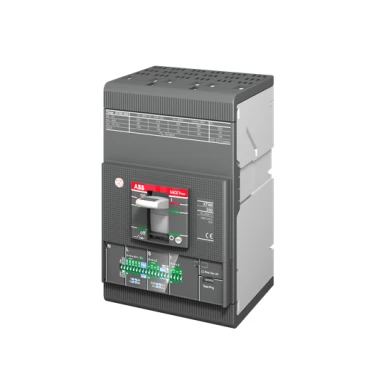

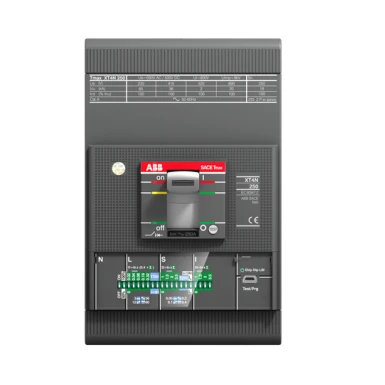

1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F - ABB

Pending restock
1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F - ABB - XT4N 160 Ekip LSI In=63A 3p F F - ABB - 0
1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F - ABB - XT4N 160 Ekip LSI In=63A 3p F F - ABB - 1
1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F - ABB - XT4N 160 Ekip LSI In=63A 3p F F - ABB - 2
1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F - ABB
447,30 € excl. VAT
554,65 € incl. VAT
Text About:
XT4N 160 Ekip LSI In=63A 3p F F - ABB
554,65 €
SPECIFICATIONS
Additional Information
Data sheet, technical information 1SDC210100D0206


1SDC210099D0206
Eclass V11.1 : 27370409
Package level 1 depth / length 168 mm
EAN 8015644020309
Product net depth / length 82.5
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Product Name Moulded Case Circuit Breaker
Product type Automatic Circuit Breaker
version F
Complementary
Declaration of conformity - ce 9AKK106713A5529
Opening time CB with SOR 15 ms
CB with UVR 15 ms
Package level 1 gross weight 2.5 kg
Product net weight 2.5
kg
[in] rated current 63 A
Cad dimensional drawing 1SDH002230A1003
Conflict minerals reporting template (cmrt) 9AKK108467A5658
Etim 4 EC000228 - Power circuit-breaker for trafo/generator/installation prot.
Etim 5 EC000228 - Power circuit-breaker for trafo/generator/installation prot.
Package level 1 height 210 mm
Product net width 105
mm
[ics] rated service breaking capacity (220 V AC) 65 A
(230 V AC) 65 A
(240 V AC) 65 A
(380 V AC) 36 A
(415 V AC) 36 A
(440 V AC) 36 A
(500 V AC) 30 A
(525 V AC) 20 A
(690 V AC) 10 A
Package level 1 units box 1 piece
Package level 1 width 145 mm
dimension 1SDH000722R0100
Environmental information 9AKK107991A8215


9AKK108467A6707
Instructions and manuals 1SDH000722R0001


1SDH000721R0506
Order code us and canada XT4NE3063FFF000XXX
Order multiple 1 piece
Gl certificate 1SDL000163R0095
Minimum order quantity 1 piece
Product main type SACE Tmax XT
mechanical durability 240 cycles per hour
25000 cycle
Object classification code Q
electrical durability 120 cycles per hour
8000 cycle
Package level 1 ean 8015644020309
Product net height 160
mm
Rated frequency (f) 50/60 Hz
Rated uninterrupted current (iu) 160 A
Rated impulse withstand voltage (uimp) 8 kV
Rated insulation voltage (ui) 1000 V AC
Rated voltage (ur) 690 V AC
Power loss at Rated Operating Conditions per Pole 1.40 W
Release Ekip LSI
Short-circuit performance level N
Rated operational voltage 690 V AC
Reach declaration 9AKK108466A1425
Sub-type XT4
Poles description 3
Terminal connection type Front
Wiring diagram 1SDM000068R0001
Ul certificate No certification needed
Rated ultimate short-circuit breaking capacity (icu) (220 V AC) 65 A
(230 V AC) 65 A
(240 V AC) 65 A
(380 V AC) 36 A
(415 V AC) 36 A
(440 V AC) 36 A
(500 V AC) 30 A
(525 V AC) 20 A
(690 V AC) 10 A
Environment
Atex certificate No certification needed
Circuit breaker type to be associated Power Distribution
Customs tariff number 85362090
Release type EL
Current type AC
ETIM - 8 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Etim 6 EC000228 - Power circuit-breaker for trafo/generator/installation prot.
Mechanical drawings 1SDH000722R0100
standards IEC
Etim 7 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Lr certificate 1SDL000163R0100
Rohs information 9AKK108466A1424
Toxic substances control act - tsca 9AKK108467A8326
Unspsc 39120000
Vde certificate No certification needed
About this product

The 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F is engineered to accommodate the desires of business buyers, such as electrical installers, wiring specialists, maintenance companies, and Industry suppliers. 1SDA068133R1 delivers remarkable capability and advantages for experts in the power systems industry. This XT4N 160 Ekip LSI In=63A 3p F F and other XT4N from ABB are procurable at the unbeatable price and delivery period through BaltElec website, an independent wholesaler attending to contractors in their purchasing needs.

Patrons who have used ABB XT4N have habitually praised the producer's sturdiness. It has been pointed out that the exceptional efficiency of 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F extends to a wide range of utilizations. Its first-rate aspects make it fitting for assorted uses. Your developed solution will excel in quality, energy-efficiency and price.

Our company concentrates in catering industrial and tertiary professionals’ needs. We get the distinct expectations and desires of our consumers in the market. By cooperating with our experts, our partners gain access to the premier price and stock of first-rate products like 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F from ABB at an economical price. Professional buyers with Baltelec account appreciate extra discounts and preferred assistance.

Move quickly and grab 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F at our well-established and accessible e-commerce site. Don't delay in making this prudent decision that warrants the finest quality and adheres to the targeted expectations of contractors like your company.

If there are any problems or concerns about 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F or any other ABB products, drop us a line or refer to our Support section section below. We have gathered answers to standard doubts to guide you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, 1SDA068133R1 - XT4N 160 Ekip LSI In=63A 3p F F from ABB is unfailing, economical, and superior to alternative suppliers in the XT4N category. Make it a part of your solution immediately. Order at baltele.eu, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu web store you will encounter XT4N 160 Ekip LSI In=63A 3p F F - 1SDA068133R1 worth 545.70 €, which will be a safe and state-of-the-art solution for your expectations. This article is produced by the ABB brand using the advanced technologies and fulfills the highest standards of security and competence. We give produce from the XT4N category that amalgamate endurance and efficacy, which is an outstanding choice for various purposes. Notwithstanding of whether you seek instruments for small production or for competent industrial employment, XT4N 160 Ekip LSI In=63A 3p F F will be a trustworthy facilitator in your occupation.

Baltelec tries to make the obtaining process as manageable and fast as attainable for our shoppers. We offer detailed descriptions and high-quality shots of XT4N 160 Ekip LSI In=63A 3p F F so that you can make an knowledgeable choice. A team of virtuosos is always ready to help you with any issues in the XT4N section relevant to the electing and use of supplies. We are confident that XT4N 160 Ekip LSI In=63A 3p F F will meet your criteria and become an important element of your tools for just 545.70 €.
