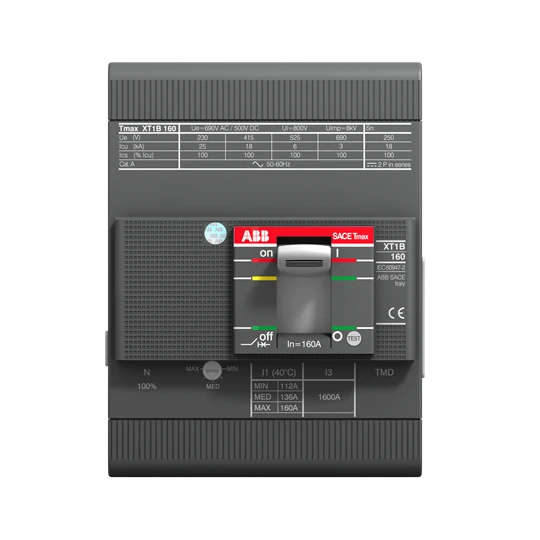

1SDA067407R1 - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB

Expected in 2-4 weeks

1SDA067407R1 - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB - 1

1SDA067407R1 - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB - 2

1SDA067407R1 - XT1C 160 TMD 125-1250 4p F F InN=50% - ABB

170,93 € excl. VAT

208,53 € incl. VAT

Text About:

XT1C 160 TMD 125-1250 4p F F InN=50% - ABB

In cart

208,53 €

SPECIFICATIONS

Additional Information

Data sheet, technical information 1SDC210100D0206

1SDC210099D0206

Eclass V11.1 : 27370409

Package level 1 depth / length 143 mm

EAN 8015644013011

Product net depth / length 70
mm

Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Weee category 5. Small Equipment (No External Dimension More Than 50 cm)

Main

Product Name Moulded Case Circuit Breaker

Product type Automatic Circuit Breaker

version F

Complementary

Declaration of conformity - ce 9AKK106713A5532

Opening time CB with SOR 15 ms
CB with UVR 15 ms

Package level 1 gross weight 1.452 kg

Product net weight 1.4
kg

[in] rated current 125 A

Cad dimensional drawing 1SDH001295R0080

Conflict minerals reporting template (cmrt) 9AKK108467A5658

Etim 4 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Etim 5 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Package level 1 height 135 mm

Product net width 101.6
mm

[ics] rated service breaking capacity (220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA

Package level 1 units box 1 piece

Package level 1 width 128 mm

dimension 1SDH000719R0100

Environmental information 9AKK107991A8215

9AKK108467A6707

Instructions and manuals 1SDH000719R0001

Order code us and canada XT1CEN125AFF000XXX

Order multiple 1 piece

Gl certificate 1SDL000163R0103

Minimum order quantity 1 piece

Product main type SACE Tmax XT

mechanical durability 240 cycles per hour
25000 cycle

Object classification code Q

electrical durability 120 cycles per hour
8000 cycle

Package level 1 ean 8015644013011

Product net height 130
mm

Rated frequency (f) 50 / 60 Hz

Rated uninterrupted current (iu) 160 A

Rated impulse withstand voltage (uimp) 8 kV

Rated insulation voltage (ui) 800 V

Rated voltage (ur) 690 V

Power loss at Rated Operating Conditions per Pole 10.7 W

Release TMD

Short-circuit performance level C

Rated operational voltage 690 V AC
500 V DC

Rated instantaneous short-circuit current setting (ii) 1250 A

Reach declaration 9AKK108466A1425

Sub-type XT1

Poles description 4

Terminal connection type Front

Wiring diagram 1SDM000068R0001

Ul certificate No certification needed

Rated ultimate short-circuit breaking capacity (icu) (220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA

Setting range 87.5...125 A

Environment

Atex certificate No certification needed

Circuit breaker type to be associated Power Distribution

Customs tariff number 85362090

Release type TM

Current type AC/DC

ETIM - 8 EC000228 - Power circuit-breaker for trafo/generator/installation protection

Etim 6 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Mechanical drawings 1SDH000719R0100

standards IEC

Etim 7 EC000228 - Power circuit-breaker for trafo/generator/installation protection

Lr certificate 1SDL000163R0100

Scip 05207d49-01fe-4e04-a5a8-47a5a5c440b0 Italy (IT)

E-number (finland) 3640510

Rohs information 9AKK108466A1424

Toxic substances control act - tsca 9AKK108467A8326

Unspsc 39120000

Vde certificate No certification needed
