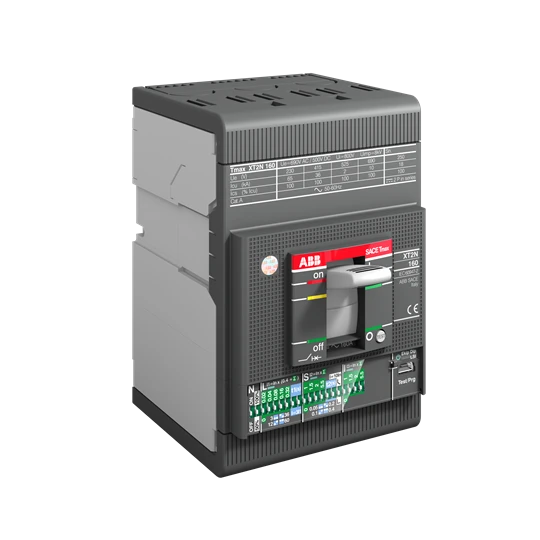

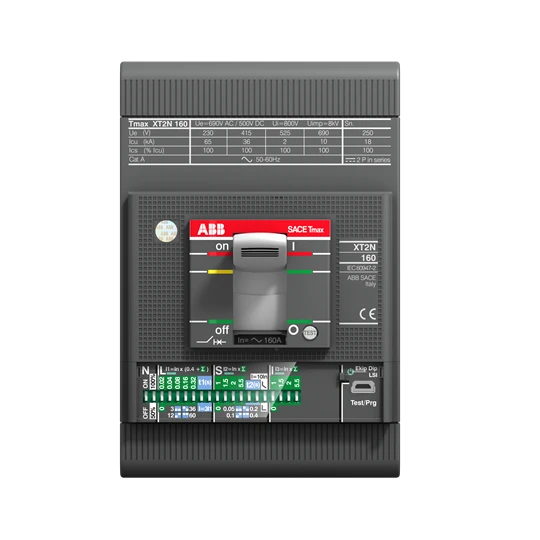

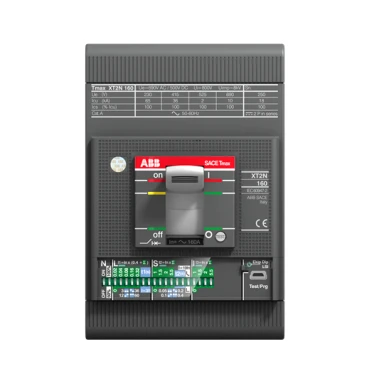

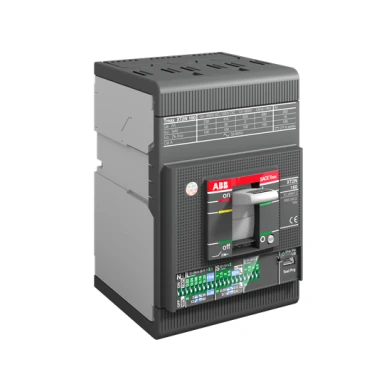

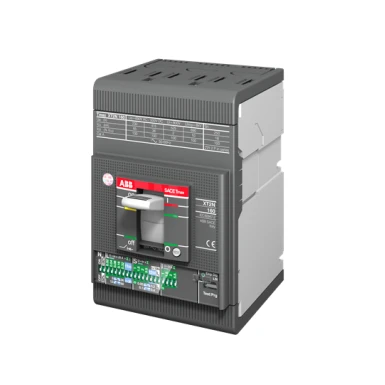

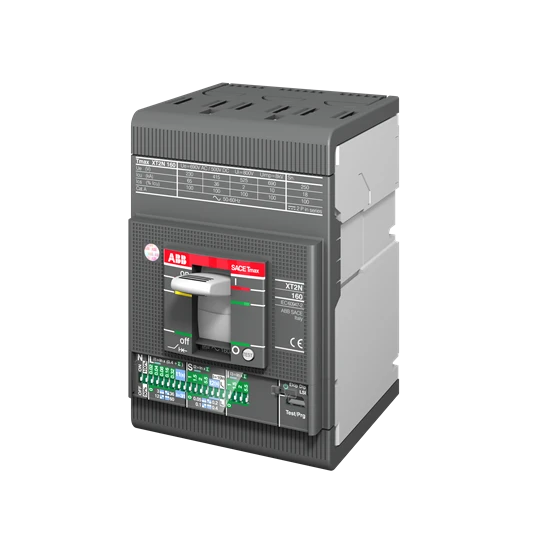

1SDA067074R1 - XT2N 160 Ekip LSIG In=63A 3p F F - ABB

Expected in 2-4 weeks

1SDA067074R1 - XT2N 160 Ekip LSIG In=63A 3p F F - ABB - XT2N 160 Ekip LSIG In=63A 3p F F - ABB - 1

1SDA067074R1 - XT2N 160 Ekip LSIG In=63A 3p F F - ABB - XT2N 160 Ekip LSIG In=63A 3p F F - ABB - 2

1SDA067074R1 - XT2N 160 Ekip LSIG In=63A 3p F F - ABB

445,01 € excl. VAT

542,91 € incl. VAT

Text About:

XT2N 160 Ekip LSIG In=63A 3p F F - ABB

In cart

542,91 €

SPECIFICATIONS

Additional Information

Data sheet, technical information 1SDC210100D0206

1SDC210099D0206

Eclass V11.1 : 27370409

Package level 1 depth / length 145 mm

EAN 8015644009786

Product net depth / length 82.5
mm

Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Weee category 5. Small Equipment (No External Dimension More Than 50 cm)

Main

Product Name Moulded Case Circuit Breaker

Product type Automatic Circuit Breaker

version F

Complementary

Declaration of conformity - ce 9AKK106713A5901

Opening time CB with SOR 15 ms
CB with UVR 15 ms

Package level 1 gross weight 1.22 kg

Product net weight 1.2
kg

[in] rated current 63 A

Cad dimensional drawing 1SDH002230A1001

Conflict minerals reporting template (cmrt) 9AKK108467A5658

Etim 4 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Etim 5 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Package level 1 height 208 mm

Product net width 90
mm

[ics] rated service breaking capacity (220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA

Package level 1 units box 1 piece

Package level 1 width 130 mm

dimension 1SDH000721R0100

Environmental information 9AKK107991A8215

9AKK108467A6707

Instructions and manuals 1SDH000721R0001

1SDH000721R0506

Order code us and canada XT2NE3063GFF000XXX

Order multiple 1 piece

Gl certificate 1SDL000163R0093

Minimum order quantity 1 piece

Product main type SACE Tmax XT

mechanical durability 240 cycles per hour
25000 cycle

Object classification code Q

electrical durability 120 cycles per hour
8000 cycle

Package level 1 ean 8015644009786

Product net height 130
mm

Rated frequency (f) 50/60 Hz

Rated uninterrupted current (iu) 160 A

Rated impulse withstand voltage (uimp) 8 kV

Rated insulation voltage (ui) 1000 V AC

Rated voltage (ur) 690 V AC

Power loss at Rated Operating Conditions per Pole 1.70 W

Release Ekip LSIG

Short-circuit performance level N

Rated operational voltage 690 V AC

Reach declaration 9AKK108466A1425

Sub-type XT2

Poles description 3

Terminal connection type Front

Wiring diagram 1SDM000068R0001

Ul certificate No certification needed

Rated ultimate short-circuit breaking capacity (icu) (220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA

Environment

Atex certificate No certification needed

Circuit breaker type to be associated Power Distribution

Customs tariff number 85362090

Release type EL

Current type AC

ETIM - 8 EC000228 - Power circuit-breaker for trafo/generator/installation protection

Etim 6 EC000228 - Power circuit-breaker for trafo/generator/installation prot.

Mechanical drawings 1SDH000721R0100

standards IEC

Etim 7 EC000228 - Power circuit-breaker for trafo/generator/installation protection

Lr certificate 1SDL000163R0100

Rohs information 9AKK108466A1424

Toxic substances control act - tsca 9AKK108467A8326

Unspsc 39120000

Vde certificate No certification needed
