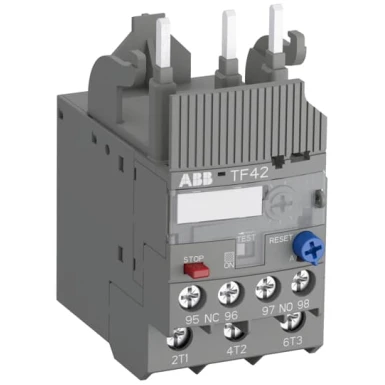

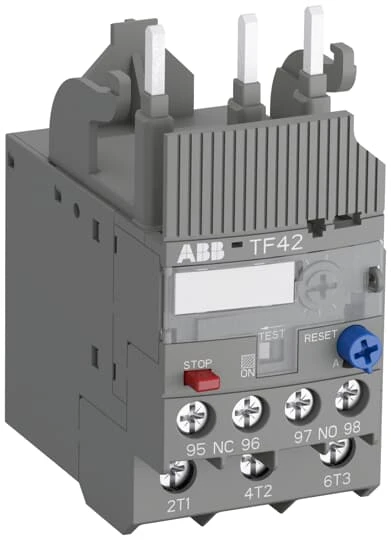

1SAZ721201R1043 - TF42-10 Thermal Overload Relay - ABB
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
Bv certificate
1SAA941001-0203
Data sheet, technical information
2CDC106023D0201
E-number (sweden)
3211969
Eclass
V11.0 : 27371501
Package level 1 depth / length
78 mm
Product net depth / length
70.5
mm
mm
Rohs status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc
5g / 3 ... 150 Hz
Main
Number of protected poles
3
degree of protection
IP20
Complementary
Ambient air temperature
Operation -25 ... +60 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
Declaration of conformity - ce
1SAD938513-0181
Package level 1 gross weight
0.145 kg
Product net weight
0.13
kg
kg
suitable for
AF09
AF12
AF16
AF26
AF30
AF38
AF12
AF16
AF26
AF30
AF38
Cad dimensional drawing
2CDC001079B0201
Etim 4
EC000106 - Thermal overload relay
Etim 5
EC000106 - Thermal overload relay
Package level 1 height
92 mm
Product net width
45
mm
mm
Ambient air temperature compensation
Yes
Cb certificate
1SAA941009-2001
Package level 1 units
carton 1 piece
Connecting capacity auxiliary circuit ul/csa
Flexible 1/2x 18-12 AWG
Stranded 1/2x 18-12 AWG
Stranded 1/2x 18-12 AWG
Package level 1 width
48 mm
tightening torque
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 1.5 ... 2.5 N·m
Main Circuit 1.5 ... 2.5 N·m
Connecting capacity main circuit
Flexible with Ferrule 1/2x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm²
Flexible 1/2x 0.75 ... 4 mm²
Rigid 1/2x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm²
Flexible 1/2x 0.75 ... 4 mm²
Rigid 1/2x 0.75 ... 4 mm²
dimension
1SAZ700405F0001
Package level 2 depth / length
395 mm
Package level 2 ean
4013614440168
Cqc certificate
CQC2011010309464423
Environmental information
1SAC200057H0009
Package level 2 gross weight
7.346 kg
Package level 2 height
210 mm
Contact rating ul/csa
(NC:) B600
(NC:) Q600
(NO:) Q600
(NO:) D300
(NC:) Q600
(NO:) Q600
(NO:) D300
Idea granular category code (igcc)
5366 >> Thermal overload relay
Package level 2 units
carton 40 piece
Dnv gl certificate
1SAA941001-0302
Instructions and manuals
2CDC106022M6802
Number of auxiliary contacts no
1
Package level 2 width
280 mm
Maximum operating altitude permissible
2000 m
Maximum operating voltage ul/csa
Main Circuit 600 V AC
Gl certificate
1SAA941007-0401
Minimum order quantity
1 piece
Iecex certificate
1SAA941003-4001
wire stripping length
Auxiliary Circuit 9 mm
Main Circuit 12 mm
Main Circuit 12 mm
Instructions and manuals (part 2)
1SAC200017M0002
Object classification code
F
Package level 1 ean
4013614398124
Pollution degree
3
Product net height
88.3
mm
mm
Rated frequency (f)
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated impulse withstand voltage (uimp)
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Main Circuit 6 kV
Rated insulation voltage (ui)
690 V
Power loss
at Rated Operating Conditions per Pole 1.1 ... 2.0 W
Rated operational current ac-15 (ie)
(120 V) NC 3 A
(120 V) NO 0.5 A
(240 V) NC 3 A
(240 V) NO 0.5 A
(400 V) NC 0.75 A
(400 V) NO 0.5 A
(500 V) NC 0.75 A
(500 V) NO 0.5 A
(120 V) NO 0.5 A
(240 V) NC 3 A
(240 V) NO 0.5 A
(400 V) NC 0.75 A
(400 V) NO 0.5 A
(500 V) NC 0.75 A
(500 V) NO 0.5 A
Rated operational current dc-13 (ie)
(125 V) NC 0.55 A
(125 V) NO 0.55 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(500 V) NC 0.15 A
(500 V) NO 0.15 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
(125 V) NO 0.55 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(500 V) NC 0.15 A
(500 V) NO 0.15 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Rated operational voltage
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Main Circuit 600 V DC
Main Circuit 690 V AC
Main Circuit 600 V DC
Reach declaration
2CMT2021-006202
Poles description
3
Recommended screw driver
Main Circuit Pozidriv 2
Rated operational current (ie)
10 A
Resistance to shock acc
11 ms Pulse 25g
Tightening torque ul/csa
Auxiliary Circuit 9 ... 11 in·lb
Main Circuit 13 ... 22 in·lb
Main Circuit 13 ... 22 in·lb
Ul certificate
E48139-20090126
Setting range
7.6 ... 10 A
Time-current characteristic curve
1SAZ700506F0016
Environment
Atex certificate
1SAA941001-3901
Connecting capacity auxiliary circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Conventional free-air thermal current (ith)
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 4 A
Auxiliary Circuit NO 4 A
Customs tariff number
85364900
EAC certificate
1SAA941002-2701
Rina certificate
1SAA941000-0802
Connecting capacity main circuit ul/csa
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Declaration of conformity - ccc
2020980304001788
ETIM - 8
EC000106 - Thermal overload relay
Etim 6
EC000106 - Thermal overload relay
Rmrs certificate
1SAA941000-0704
standards
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
Declaration of conformity - ukca
1SAD938501-1181
Etim 7
EC000106 - Thermal overload relay
Ex operating instructions
2CDC106076M6801
Lr certificate
1SAA941001-0502
E-number (finland)
3706125
Number of auxiliary contacts nc
1
Rohs information
2CMT2021-006277
Unspsc
39122330
