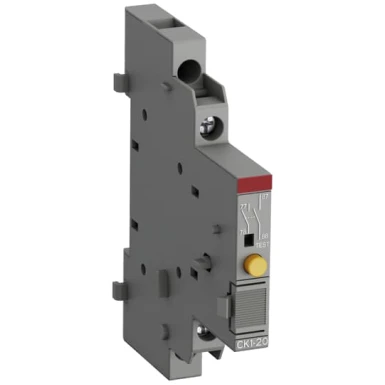

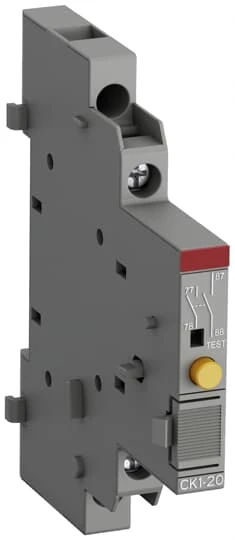

1SAM301901R1002 - CK1-20 Short-Circuit Signal Contact - ABB
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
Bv certificate
1SAA963002-0201
Data sheet, technical information
1SBC100214C0202
E-number (sweden)
3110146
Eclass
V11.0 : 27371302
Package level 1 depth / length
80 mm
Product net depth / length
78
mm
mm
Rohs status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc
5g / 3 ... 150 Hz
Suitable for product class
Manual Motor Starter
Main
Accessory category
Electrical
Terminal type
Screw Terminals
Product Name
Short Circuit Signaling Contact
degree of protection
IP20
Complementary
Accessory type
Short Circuit Signaling Contact
Ambient air temperature
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Storage -50 ... +80 °C
Declaration of conformity - ce
1SAD101100-3410
Package level 1 gross weight
0.08 kg
Product net weight
0.035
kg
kg
suitable for
MS132
MS165
MS165
Cad dimensional drawing
2CDC001079B0201
Etim 4
EC002498 - Accessories for low-voltage switch technology
Etim 5
EC000041 - Auxiliary contact block
Package level 1 height
93 mm
Product net width
9
mm
mm
Cb certificate
1SAA963004-2002
Package level 1 units
2 piece
Connecting capacity auxiliary circuit ul/csa
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Package level 1 width
25 mm
tightening torque
Auxiliary Circuit 0.8 ... 1.2 N·m
Package level 2 depth / length
395 mm
Package level 2 ean
4013614526022
Cqc certificate
CQC2017010304032778
Package level 2 height
210 mm
Contact rating ul/csa
B600
Q600
Q600
Idea granular category code (igcc)
4743 >> Auxiliary contact block
Package level 2 units
160 piece
Dnv gl certificate
1SAA963001-0304
Instructions and manuals
2CDC131027M6802
2CDC131081M6801
2CDC131081M6801
Number of auxiliary contacts no
2
Package level 2 width
280 mm
Maximum operating voltage ul/csa
Main Circuit 600 V AC
Minimum order quantity
2 piece
wire stripping length
Auxiliary Circuit 8 mm
mechanical durability
10000 cycle
Object classification code
Q
electrical durability
10000 cycle
Package level 1 ean
4013614481536
Product net height
90
mm
mm
Rated impulse withstand voltage (uimp)
Auxiliary Circuit 6 kV
Rated insulation voltage (ui)
690 V
Rated operational current ac-15 (ie)
(24 V) 6 A
(240 V) 4 A
(690 V) 1 A
(380 / 400 V) 3 A
(240 V) 4 A
(690 V) 1 A
(380 / 400 V) 3 A
Rated operational current dc-13 (ie)
(24 V) 2 A
(125 V) 0.55 A
(250 V) 0.27 A
(440 V) 0.15 A
(600 V) 0.15 A
(125 V) 0.55 A
(250 V) 0.27 A
(440 V) 0.15 A
(600 V) 0.15 A
Rated operational voltage
690 V AC
600 V DC
Main Circuit 690 V
600 V DC
Main Circuit 690 V
Reach declaration
1SAA963005-4502
Recommended screw driver
M3
Pozidriv 2
Pozidriv 2
Resistance to shock acc
11 ms Pulse 25g
Tightening torque ul/csa
Auxiliary Circuit 7 in·lb
Ul certificate
UL_E137861
Environment
Connecting capacity auxiliary circuit
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Customs tariff number
85365080
Rina certificate
1SAA963002-0802
Cul certificate
cUL_E137861
Declaration of conformity - ccc
2020980304001252
ETIM - 8
EC000041 - Auxiliary contact block
Etim 6
EC000041 - Auxiliary contact block
standards
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-5-1
UL 508
UL 60947-1
UL 60947-5-1
IEC/EN 60947-1
IEC/EN 60947-5-1
UL 508
UL 60947-1
UL 60947-5-1
Declaration of conformity - ukca
1SAD201100-3410
Etim 7
EC000041 - Auxiliary contact block
Lr certificate
1SAA963001-0502
1SAA918001-0501
1SAA918001-0501
E-number (finland)
3706161
Rohs information
1SAA963006-4502
Unspsc
39121522
Instructions and manuals (part 3)
1SBC100214C0202
