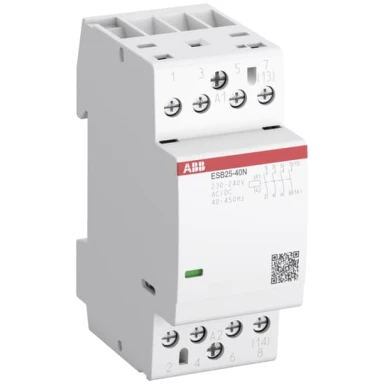

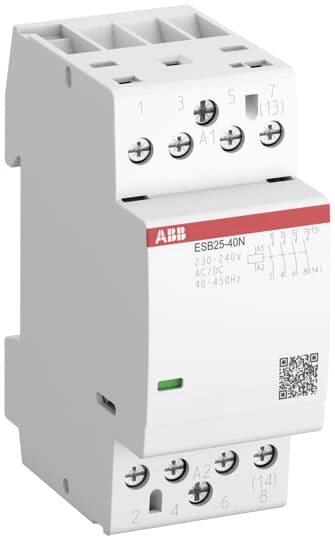

Buy ESB25-13N-07 Installation Contactor - 1SAE231111R0713, ABB ⚡️ Balt-Elec

Additional Information

Eclass V11.0 : 27142308

Package level 1 depth / length 39 mm

Product net depth / length 65
mm

Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Main

degree of protection IP20

Complementary

Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +80 °C

Declaration of conformity - ce 1SAD938506-0302

Package level 1 gross weight 0.235 kg

Product net weight 0.235
kg

Cad dimensional drawing 2CDC001079B0201

Etim 5 EC001653 - Installation contactor for distribution board

Package level 1 height 69.5 mm

Product net width 36
mm

Cb certificate 1SAA920004-2001

Package level 1 units 1 piece

Connecting capacity control circuit Flexible with Ferrule 1x 1 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1 mm²
Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²
Flexible 1x 1 ... 4.0 mm²
Flexible 2x 1 ... 2.5 mm²
Rigid 1x 1 ... 4 mm²
Rigid 2x 1 ... 2.5 mm²

Package level 1 width 92 mm

tightening torque Control Circuit 0.9 N·m
Main Circuit 1 N·m

Connecting capacity main circuit Flexible with Ferrule 1x 1.5 ... 10 mm²
Flexible with Ferrule 2x 1.5 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²
Flexible with Insulated Ferrule 2x 1.5 mm²
Flexible 1x 1.5 ... 10 mm²
Flexible 2x 1.5 ... 4 mm²
Rigid 1x 1.5 ... 10 mm²
Rigid 2x 1.5 ... 4 mm²

Package level 2 depth / length 395 mm

Package level 2 ean 4013614538674

Cqc certificate CQC2017010304993564

CQC2017010304993565

Environmental information 1SAC200063H0009

Package level 2 gross weight 11.8 kg

Horsepower rating ul/csa (220 ... 240 V AC) Single Phase, NC 1 Hp
(220 ... 240 V AC) Single Phase, NO 1 Hp
(220 ... 240 V AC) Three Phase, NC 3 Hp
(440 ... 480 V AC) Single Phase, NC 0.5 Hp
(440 ... 480 V AC) Single Phase, NO 2 Hp
(440 ... 480 V AC) Three Phase, NC 2 Hp

Package level 2 height 210 mm

Idea granular category code (igcc) 4759 >> Installation contactor for distribution board

Package level 2 units 48 piece

Instructions and manuals 2CDC103043M6801

Package level 2 width 280 mm

Maximum operating altitude permissible 2000 m

Maximum operating voltage ul/csa Main Circuit 480 V AC

Minimum order quantity 1 piece

Number of main contacts nc 3

wire stripping length Control Circuit 7 mm
Main Circuit 10 mm

mechanical durability 1000000 cycle

Number of main contacts no 1

Object classification code Q

electrical durability AC-1 (NO) 130000 cycle
AC-3 (NO) 500000 cycle
AC-7a (NO) 130000 cycle
AC-7b (NO) 500000 cycle

Package level 1 ean 4013614524271

Pollution degree 3

Product net height 85
mm

Rated control circuit voltage (uc) 400 ... 415 V

Rated frequency (f) Control Circuit 400 Hz
Control Circuit 50 Hz
Control Circuit 60 Hz
Control Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit DC

Rated impulse withstand voltage (uimp) 6 kV

Rated insulation voltage (ui) 500 V

Rated operational current ac-1 (ie) (NC) 25 A
(NO) 25 A

Rated operational current ac-3 (ie) (230 V) Single Phase, NC 6 A
(230 V) Single Phase, NO 9 A
(400 V) Three Phase, NC 6 A

Rated operational current ac-7a (ie) (NC) 25 A
(NO) 25 A

Rated operational current ac-7b (ie) (230 V) Single Phase, NC 6 A
(230 V) Single Phase, NO 9 A
(400 V) Three Phase, NC 6 A

Rated operational power ac-1 (pe) (230 V) Single Phase, NC 5.8 kW
(400 V) Three Phase, NC 17.3 kW
(230 V) Single Phase, NO 5.8 kW

Rated operational power ac-3 (pe) (230 V) Single Phase, NC 0.9 kW
(230 V) Single Phase, NO 1.3 kW
(400 V) Three Phase, NC 2.7 kW

Rated operational power ac-7a (pe) (230 V) Single Phase, NC 5.8 kW
(230 V) Single Phase, NO 5.8 kW
(400 V) Three Phase, NC 17.25 kW

Rated operational power ac-7b (pe) (230 V) Single Phase, NC 0.9 kW
(230 V) Single Phase, NO 1.3 kW
(400 V) Three Phase, NC 2.7 kW

Rated operational voltage Main Circuit 220 V DC
Main Circuit 400 V AC

Reach declaration 2CMT2021-006202

Poles description 4

Recommended screw driver Control Circuit Pozidriv 1
Main Circuit Pozidriv 1

Resistance to shock acc 11 ms Pulse 15g

Tightening torque ul/csa Control Circuit 8 in·lb
Main Circuit 9 in·lb

Ul certificate E191658-19960301

Environment

Connecting capacity control circuit ul/csa Solid 16-10 AWG
Stranded 16-10 AWG

Customs tariff number 85365080

EAC certificate 1SAA920001-2702

Rina certificate 1SAA920000-0801

Connecting capacity main circuit ul/csa Solid 16-8 AWG
Stranded 16-8 AWG

Declaration of conformity - ccc 2020980304001312

2020980304001314

ETIM - 8 EC001653 - Installation contactor for distribution board

Etim 6 EC001653 - Installation contactor for distribution board

Rmrs certificate 1SAA920000-0705

standards IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 61095
UL 60947-1
UL 60947-4-1

Declaration of conformity - ukca 1SAD938501-1302

Etim 7 EC001653 - Installation contactor for distribution board

Width in number of modular spacings 2

Dnv certificate 1SAA920000-0306

Rohs information 2CMT2021-006277

Unspsc 39121529

1SAE231111R0713 - ESB25-13N-07 Installation Contactor - ABB
