Main
Device short name

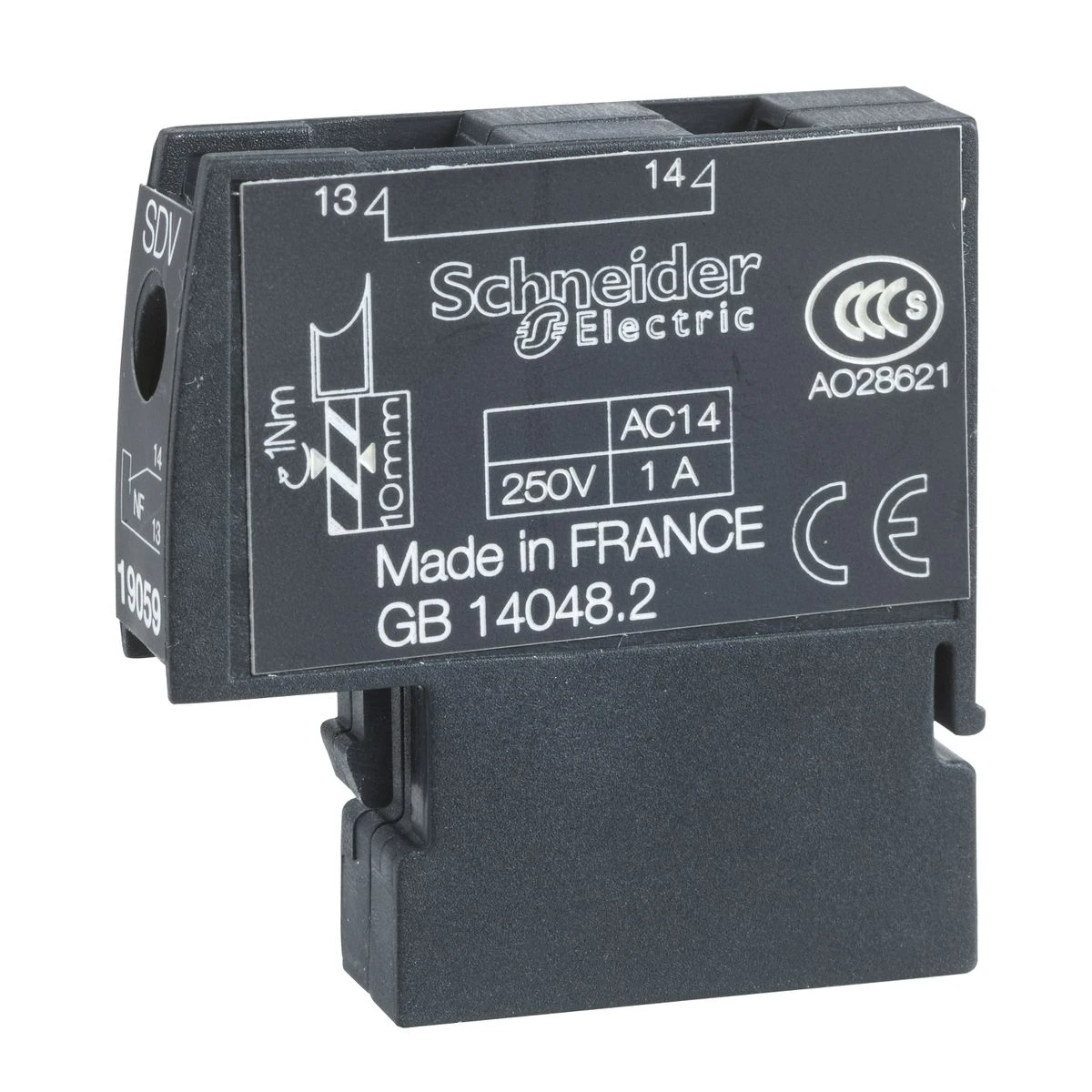

SDV NF
[ui] rated insulation voltage
690 V AC 50/60 Hz
Complementary
9 mm pitches
1
[in] rated current
AC-14 0.1…1 A at 250 V, AC 50/60 Hz
Handle front plate colour
36 mm
Product or component type
Fault contact
tightening torque
1 N.m
[uimp] rated impulse withstand voltage
8 kV
mounting location
Upstream
Connections - terminals
Plate terminal1 cable(s) 0.5…2.5 mm² - rigid
Plate terminal1 cable(s) 0.5…1.5 mm² - flexible
Plate terminal1 cable(s) 0.5…1.5 mm² - flexible with ferrule
Plate terminal2 cable(s) 2.5 mm² - rigid
Plate terminal2 cable(s) 2.5 mm² - flexible
Plate terminal2 cable(s) 1.5 mm² - flexible with ferrule
width (w)
8.8 mm
Mounting mode
Plug-on
wire stripping length
10 mm
depth
34.64 mm
electrical durability
10000 cycles
Pollution degree
3
Signal contacts composition
1 NC
Environment
Ambient air temp for storage/transportation
-40…85 °C
Range of product
Acti9
ambient air temperature for operation
-25…60 °C
Tropicalisation
2
