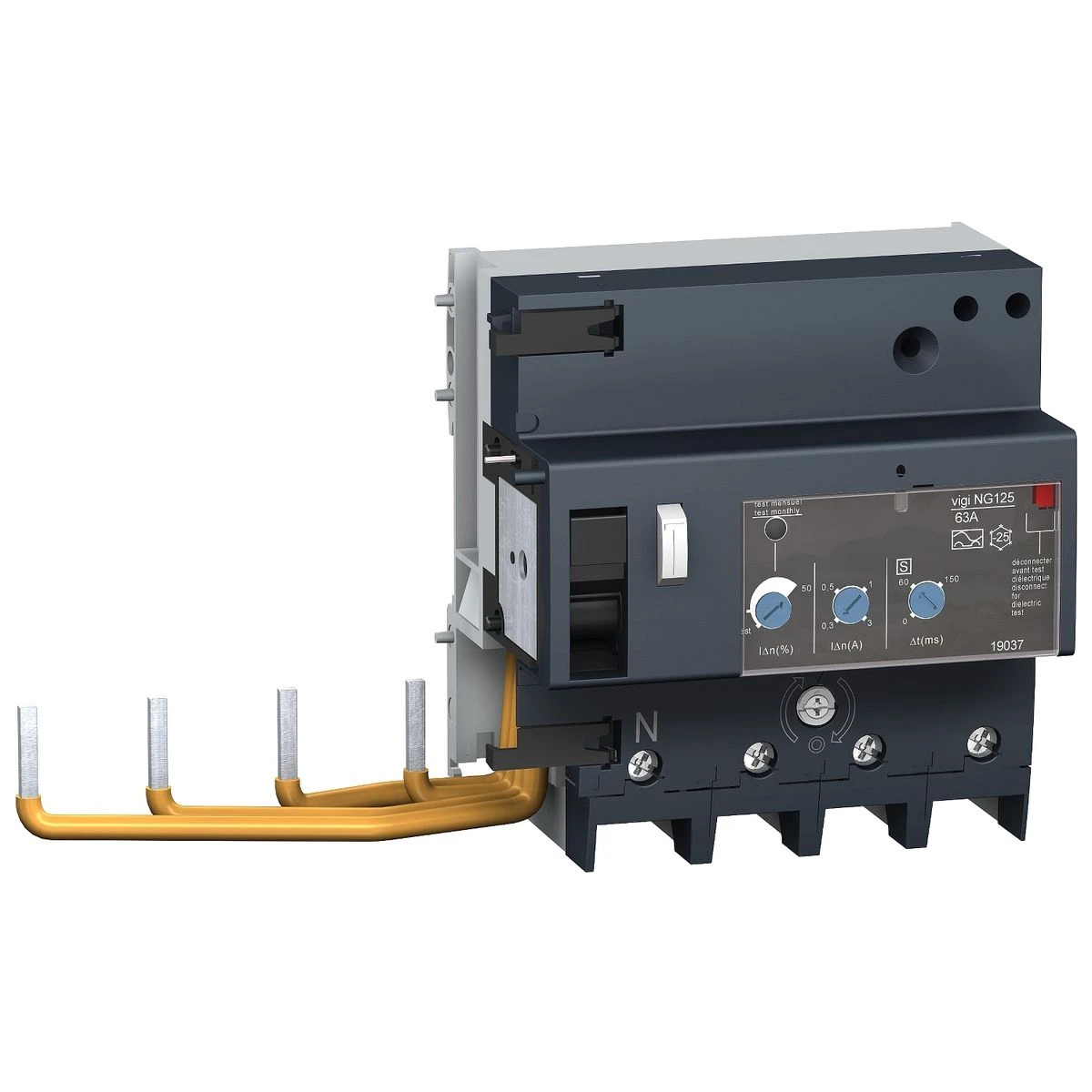

19049 - NG125 earth leakage addon block Vigi NG125 4P 125A 300 mA, 500 mA, 1000 mA, 3000 mA - Schneider Electric

Expected in 2-4 weeks

427,98 € excl. VAT

522,13 € incl. VAT

Text About:

NG125 earth leakage addon block Vigi NG125 4P 125A 300 mA, 500 mA, 1000 mA, 3000 mA - Schneider Electric

In cart

522,13 €

SPECIFICATIONS

Main

Device short name Vigi NG125

Device location in system Outgoer

Earth-leakage protection class Type A

Earth-leakage protection time delay Adjustable instantaneous/selective/delayed

Earth-leakage sensitivity 300 mA
1000 mA
500 mA
3000 mA

[ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2

Complementary

9 mm pitches 11

[in] rated current 125 A

[ue] rated operational voltage 230...415 V AC 50/60 Hz

Handle front plate colour 118 mm

Product or component type Add-on residual current devices

tightening torque 6 N.m

[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2

Connections - terminals Tunnel type terminals 10…50 mm² flexible
Tunnel type terminals 16…70 mm² rigid

Electrical connection to mcb By screws

width (w) 207 mm

network frequency 50/60 Hz

Net weight 0.8 kg

wire stripping length 20 mm

Mounting support 35 mm symmetrical DIN rail

depth 81 mm

electrical durability 10000 cycles conforming to IEC 60947-2

Network type AC

Pollution degree 3 conforming to IEC 60947-2

residual current tripping technology Voltage independent

Poles description 4P

Environment

ip degree of protection IP40 conforming to IEC 60947-2

operating altitude 2000 m

electromagnetic compatibility 8/20 µs impulse withstand, 5000 A conforming to IEC 60947-2

standards IEC 60947-2
IEC/EN 61009-2-1

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
