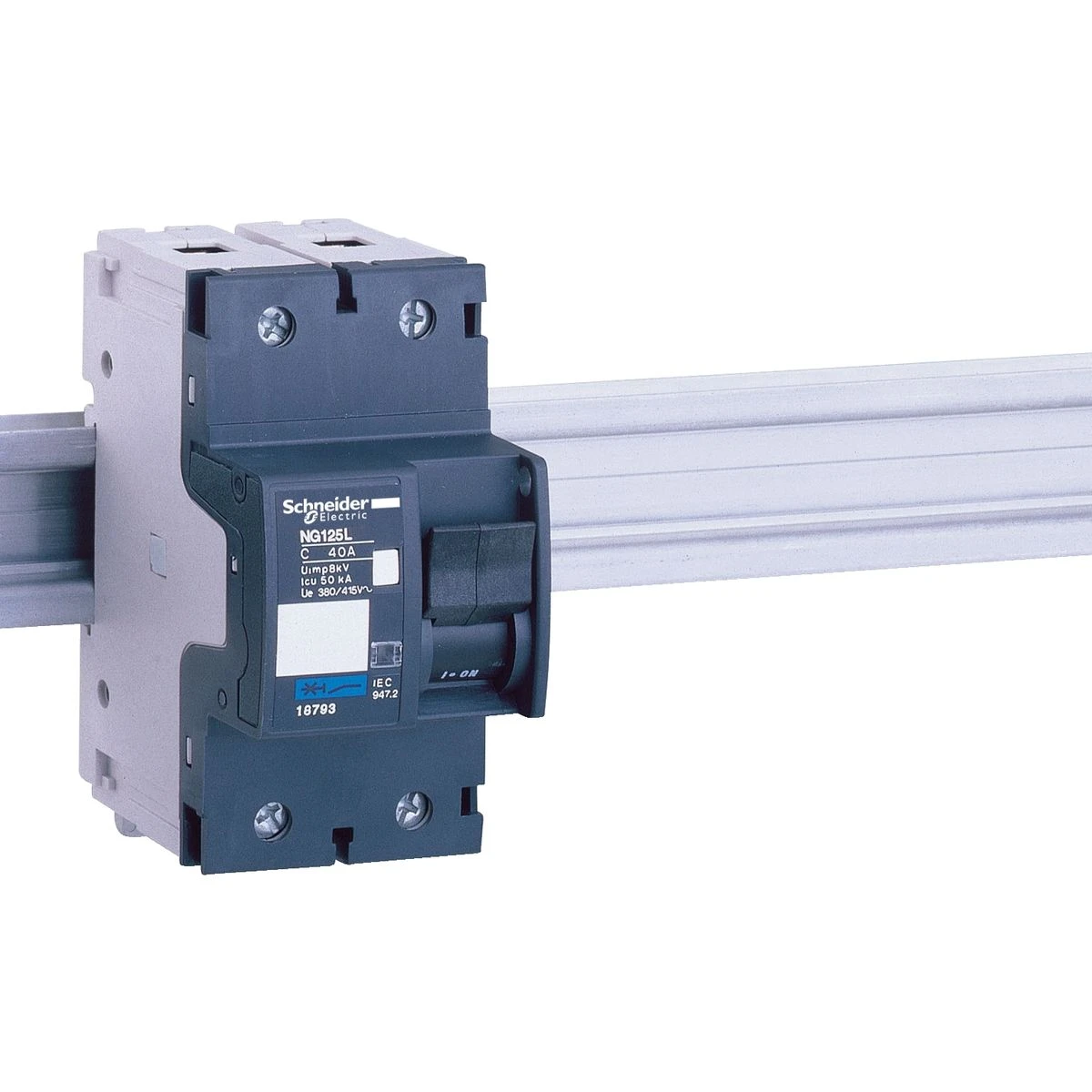

18789 - Miniature circuit breaker (MCB), Acti9 NG125L, 2P, 16A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric

Expected in 2-4 weeks EAN: 3303430187899

EAN: 3303430187899

118,53 € excl. VAT

144,61 € incl. VAT

Text About:

Miniature circuit breaker (MCB), Acti9 NG125L, 2P, 16A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric

In cart

144,61 €

SPECIFICATIONS

Additional Information

curve C

Main

product range NG125

Range Acti9

sectioning ability Oui se conformer à CEI 60947-2

job category Catégorie A se conformer à CEI 60947-2

name of the device NG125L

type of product or equipment Disjoncteur miniature

Product Name Acti9 NG125

[ui] rated insulation voltage 690 V CA 50/60 Hz se conformer à EN/CEI 60947-2

number of poles protected 2

neutral pole position Gauche

type of trigger Thermique-magnétique

Complementary

9 mm pitches 6

[ue] rated operational voltage 380...415 V CA 50/60 Hz
500 V CA 50/60 Hz
220...240 V CA 50/60 Hz
440 V CA 50/60 Hz
<= 250 V CC

application Distribution

[ics] rated service breaking capacity 75 kA 75 % se conformer à EN/CEI 60947-2 - 220...240 V CA 50/60 Hz
37,5 kA 75 % se conformer à EN/CEI 60947-2 - 380...415 V CA 50/60 Hz
30 kA 75 % se conformer à EN/CEI 60947-2 - 440 V CA 50/60 Hz
11,25 kA 75 % se conformer à EN/CEI 60947-2 - 500 V CA 50/60 Hz
50 kA 100 % se conformer à EN/CEI 60947-2 - 250 V CC

Handle front plate colour 103 mm

tightening torque 3,5 N.m

[uimp] rated impulse withstand voltage 8 kV se conformer à EN/CEI 60947-2

compatibility of distributors, combs, busbars Oui

in rated operational current 16 A à 40 °C

product weight 0,48 kg

fully apparent cut Oui

mode d'installation Encliquetable

electrical life 10000 cycle

connection mode Borne du type à cage1,5…50 mm² rigide
Borne du type à cage1…35 mm² souple

magnetic trigger 8 x In +/- 20 %

mechanical endurance 20000 cycle

width (w) 54 mm

network frequency 50/60 Hz

voltage indication Signalisation de déclenchement
Indication ON/OFF

wire stripping length 20 mm

depth 81 mm

mounting bracket Rail DIN symétrique 35 mm

Network type CA
CC

optional locks Verrouillage intégré

differential protection Bloc séparé

lockdown forecast Cadenassable

order type Par maneton
Test de déclenchement manuel

Poles description 2P

Environment

degree of pollution 3 se conformer à CEI 60947-2

ip degree of protection IP20 se conformer à CEI 60529

operating altitude 2000 m

overvoltage category IV

standards EN/CEI 60947-2

relative humidity 95 % à 55 °C

shock resistance ik IK05 se conformer à EN/CEI 62262

operating ambient air temperature -30…70 °C

storage room temperature -40…70 °C

tropicalization 2 se conformer à CEI 60068-1
