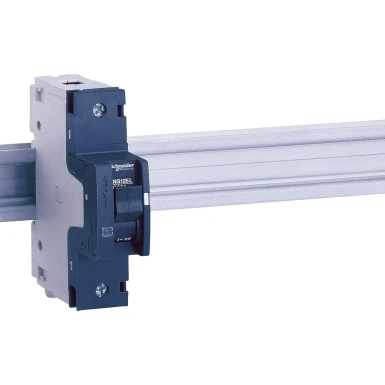

18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric

Expected in 2-4 weeks
18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric - 0
18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric
66,13 € excl. VAT
82,00 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - Schneider Electric
82,00 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name NG125L
Range Acti9
Number of protected poles 1
Product Name Acti9 NG125
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 690 V AC 50/60 Hz conforming to EN/IEC 60947-2
Complementary
9 mm pitches 3
[in] rated current 50 A at 40 °C
[ue] rated operational voltage 380...415 V AC 50/60 Hz
125 V DC
<= 144 V DC
12 V DC
220...240 V AC 50/60 Hz
110...130 V AC 50/60 Hz
[ics] rated service breaking capacity 37.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
75 kA 75 % conforming to EN/IEC 60947-2 - 110...130 V AC 50/60 Hz
9.37 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
50 kA 100 % conforming to EN/IEC 60947-2 - 60 V DC
50 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC
Control type Manual tripping test
Toggle
Handle front plate colour 103 mm
Product or component type Miniature circuit-breaker
tightening torque 3.5 N.m
[uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Comb busbar and distribution block compatibility YES
Connections - terminals Tunnel type terminals1.5…50 mm² rigid
Tunnel type terminals1…35 mm² flexible
Locking options description Integrated padlocking
Contact position indication Yes
Device application Distribution
width (w) 27 mm
network frequency 50/60 Hz
Ik degree of protection IK05 conforming to EN/IEC 62262
Local signalling ON/OFF indication
Trip indicator
Mounting mode Clip-on
Net weight 0.24 kg
wire stripping length 20 mm
Earth-leakage protection Without
Mounting support 35 mm symmetrical DIN rail
depth 81 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 8 x In +/- 20 %
Network type DC
AC
Pollution degree 3 conforming to IEC 60947-2
Provision for padlocking Padlockable
Suitability for isolation Yes conforming to IEC 60947-2
Poles description 1P
Utilisation category Category A conforming to IEC 60947-2
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 conforming to IEC 60529
operating altitude 2000 m
Range of product NG125
ambient air temperature for operation -30…70 °C
overvoltage category IV
standards EN/IEC 60947-2
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) is developed to fulfill the wants of trade buyers, such as installers, wiring specialists, service organizations, and original producers. 18783 supplies first-rate reliability and value for engineers in the automation and control industry. This Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) and other NG125 from Schneider Electric can be purchased at the lowest cost and delivery period through BALTELEC.EU, a reliable distributor supplying tradesmen in their acquisition needs.

Buyers who have bought Schneider Electric NG125 have commonly approved the manufacturer’s reliability. It has been indicated that the excellent energy-efficiency of 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) extends to a collection of operations. Its high-end features make it optimal to meet diverse demands. Your developed solution will excel in quality, energy-efficiency and price.

BALTELEC centers in meeting industrial and tertiary professionals’ needs. We recognize the distinct expectations and expectations of our buyers in the industry. By cooperating with Baltelec.eu, your organization gain access to the leading charges and availability of the top-of-the-line products like 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) from Schneider Electric at a competitive price. Account holders appreciate extra discounts and preferred assistance.

Don't wait and grab 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) at our safe and streamlined webshop. Don't delay in making this thoughtful choice that warrants the paramount quality and fulfills the specific prerequisites of professionals like your company.

Should there be any worries or concerns about 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) or any other Schneider Electric products, connect with us or refer to our Help section section below. We have put together answers to habitual problems to serve you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, 18783 - Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) from Schneider Electric is consistent, low-cost, and top-notch to other producers in the NG125 category. Make it a part of your configuration today. Buy at Baltelec webstore, your steady distributor for all your Schneider Electric.

In our Baltelec.eu electronic store you will uncover Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) - 18783 worth 80.68 €, which will be a steadfast and contemporary solution for your wishes. This goods is developed by the Schneider Electric brand using the state-of-the-art technologies and fulfills the pinnacle standards of assurance and effectiveness. We deliver things from the NG125 category that integrate longevity and usability, which is an first-rate election for various operations. In defiance of whether you demand equipment for small output or for competent industrial exploitation, Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) will be a dependable companion in your work.

Baltelec efforts to make the acquiring process as smooth and fast as viable for our clients. We offer detailed outlines and high-quality depictions of Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) so that you can make an briefed choice. A team of pros is always ready to help you with any questions in the NG125 section relevant to the determining and use of equipment. We are confident that Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2) will meet your expectations and become an necessary element of your tools for just 80.68 €.

Customer Queries about Schneider Electric Miniature circuit breaker (MCB), Acti9 NG125L, 1P, 50A, C curve, 50kA (IEC/EN 60947-2):
