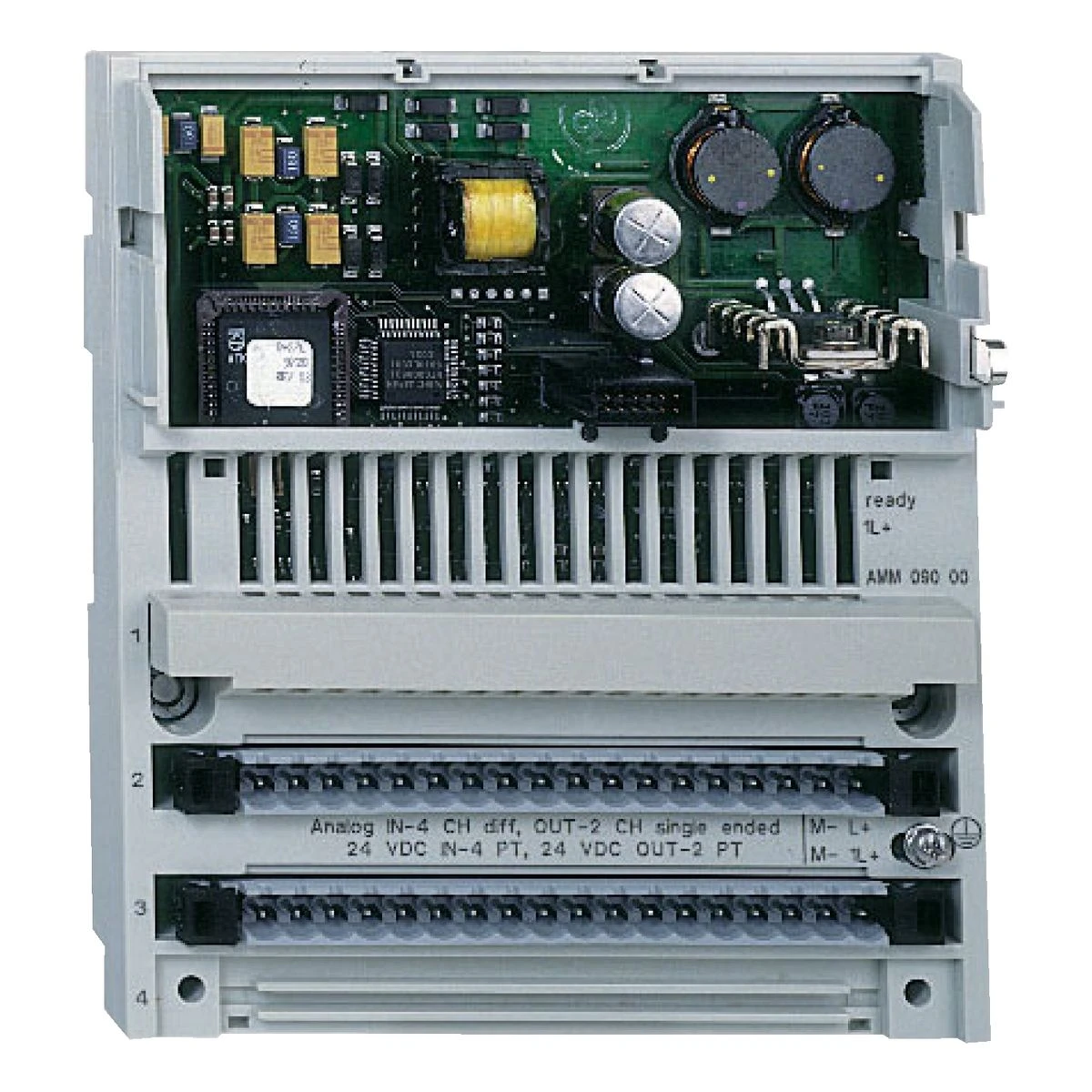

170ANR12091 - Distributed analog/discrete I/O 4 I / 8 O discrete 6 I / 4 O analog - Schneider Electric
Expected in 2-4 weeks
1 308,57 €
Text About:
Distributed analog/discrete I/O 4 I / 8 O discrete 6 I / 4 O analog - Schneider Electric
SPECIFICATIONS
Main
Analogue input resolution
14 bits +/- 10 V
Discrete output logic
Positive
Group of channels
1 group of 8 discrete outputs
2 groups of 4 discrete inputs
1 group of 6 analog inputs
1 group of 4 analog outputs
2 groups of 4 discrete inputs
1 group of 6 analog inputs
1 group of 4 analog outputs
Complementary
Product certifications
UL
CSA
CSA
response time
1.05 ms from state 1 to state 0 for discrete output
1.2 ms from state 0 to state 1 for discrete input
1.2 ms from state 0 to state 1 for discrete output
1.2 ms from state 1 to state 0 for discrete input
1.2 ms from state 0 to state 1 for discrete input
1.2 ms from state 0 to state 1 for discrete output
1.2 ms from state 1 to state 0 for discrete input
Analogue input range
+/- 10 V DC
Analogue output range
+/- 10 V 14 bits
Handle front plate colour
125 mm
maximum leakage current
0.4 mA DC 30 V discrete output
Product or component type
Analogue,discrete I/O base
[us] rated supply voltage
24 V (19.2…30 V)DC
Current consumption
400 mA at 24 V DC
maximum voltage drop
<0.4 V 0.25 A at state on discrete output
current state 0 guaranteed
<= 2 mA (discrete input)
marking
CE
current state 1 guaranteed
>= 6 mA (discrete input)
maximum power dissipation in w
6 W
Analogue input type
Single ended
Discrete output current
2 A per group
2 A per module
0.25 A per point
2 A per module
0.25 A per point
output short-circuit protection
With discrete output
Discrete input logic
Positive
Fail state
For analogue output: hold
For analogue output: reset to zero
For analogue output: reset to zero
width (w)
141.5 mm
conversion error
+/- 0.4 % +/- 10 V 25 °C analogue output
Input resistance
1 MOhm analogue input circuit
input voltage limits
3...32 V
Discrete input voltage
24 V DC
Local signalling
8 LEDs for channel status
Discrete input number
8 conforming to IEC 1131-2 Type 2
Net weight
0.24 kg
Discrete output type
Transistor
Discrete output voltage
10...30 V
voltage state 1 guaranteed
>= 11 V for discrete input
Input overvoltage protection
45 V 10 s discrete input
depth
47.5 mm
Output overload protection
With discrete output
voltage state 0 guaranteed
<= 5 V for discrete input
electrical connection
2 connectors for removable terminal blocks
Isolation voltage
500 V (duration = 1 min) between analogue I/O and operating voltage
500 V (duration = 1 min) between operating voltage and I/O from ground
500 V (duration = 1 min) between operating voltage and I/O from ground
Output load
>= 2 kOhm +/- 10 V analogue output
Surge current
2.5 A 1 ms discrete output
Maximum analogue input voltage
15 V
Resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
conversion time
0.75 ms analogue input circuit
1.2 ms analogue output
1.2 ms analogue output
Resistance to electromagnetic fields
10 V/m 80...1000 MHz conforming to IEC 801-3
Environment
Ambient air temp for storage/transportation
-40…85 °C
operating altitude
<= 5000 m
Range of product
Modicon Momentum automation platform
ambient air temperature for operation
0…60 °C
relative humidity
95 % without condensation
protective treatment
TC
