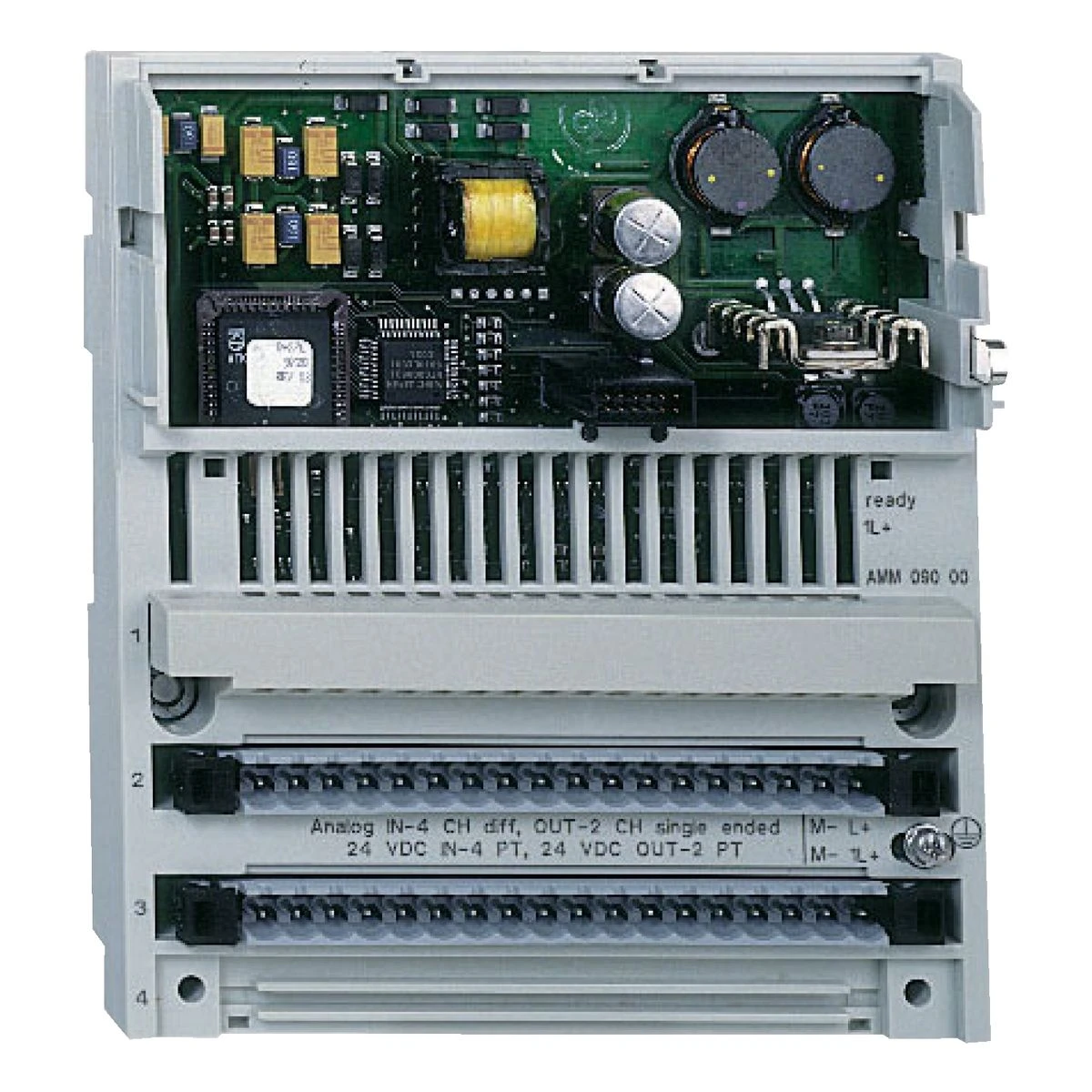

170AMM09000 - Distributed analog/discrete I/O Modicon Momentum - Schneider Electric
Expected in 2-4 weeks
1 015,93 € excl. VAT
1 239,43 € incl. VAT
Text About:
Distributed analog/discrete I/O Modicon Momentum - Schneider Electric
SPECIFICATIONS
Main
Analogue input resolution
12 bits 1...5 V
12 bits 4...20 mA
13 bits +/- 20 mA
13 bits +/- 5 V
14 bits +/- 10 V
12 bits 4...20 mA
13 bits +/- 20 mA
13 bits +/- 5 V
14 bits +/- 10 V
Discrete output logic
Positive
Group of channels
1 group of 2 discrete outputs
1 group of 4 discrete inputs
1 group of 4 analog differential inputs
1 group of 2 analog outputs
1 group of 4 discrete inputs
1 group of 4 analog differential inputs
1 group of 2 analog outputs
Complementary
Product certifications
UL
CSA
FM Class 1 Division 2
CSA
FM Class 1 Division 2
response time
< 0.1 ms from state 0 to state 1 for discrete output
< 0.1 ms from state 1 to state 0 for discrete output
2.2 ms from state 0 to state 1 for discrete input
3.3 ms from state 1 to state 0 for discrete input
< 0.1 ms from state 1 to state 0 for discrete output
2.2 ms from state 0 to state 1 for discrete input
3.3 ms from state 1 to state 0 for discrete input
Analogue input range
+/- 10 V
+/- 20 mA
+/- 5 V
1...5 V
4...20 mA
+/- 20 mA
+/- 5 V
1...5 V
4...20 mA
Analogue output range
+/- 10 V 12 bits
0...20 mA 12 bits
0...20 mA 12 bits
Handle front plate colour
125 mm
maximum leakage current
1 mA DC 24 V discrete output
Product or component type
Analogue,discrete I/O base
[us] rated supply voltage
24 VDC
Current consumption
<= 350 mA at 24 V DC
200 mA at 24 V DC
200 mA at 24 V DC
maximum voltage drop
<0.5 V 1 A at state on discrete output
current state 0 guaranteed
<= 1.2 mA (discrete input)
marking
CE
Common mode rejection
> 54 dB analogue input circuit
Conversion consistency
+/- 0.02 % +/- 10 V analogue input circuit
+/- 0.04 % +/- 20 mA analogue input circuit
+/- 0.04 % +/- 5 V analogue input circuit
+/- 0.04 % 1...5 V analogue input circuit
+/- 0.04 % 4...20 mA analogue input circuit
+/- 0.04 % +/- 20 mA analogue input circuit
+/- 0.04 % +/- 5 V analogue input circuit
+/- 0.04 % 1...5 V analogue input circuit
+/- 0.04 % 4...20 mA analogue input circuit
current state 1 guaranteed
>= 2.5 mA (discrete input)
maximum power dissipation in w
6 W
Analogue input type
Differential
Discrete output current
1 A per point
2 A per group
2 A per module
2 A per group
2 A per module
output short-circuit protection
With discrete output
Discrete input logic
Positive
Fail state
For analogue input circuit: hold
For analogue input circuit: reset to zero
For analogue input circuit: reset to zero
width (w)
141.5 mm
conversion error
+/- 0.35 % +/- 10 V 25 °C analogue output
+/- 0.35 % 0...20 mA 25 °C analogue output
+/- 0.70 % +/- 10 V 60 °C analogue output
+/- 0.70 % 0...20 mA 60 °C analogue output
0,0008 +/- 10 V 25 °C analogue input circuit
0,0015 +/- 10 V 60 °C analogue input circuit
0,0016 +/- 20 mA 25 °C analogue input circuit
0,0016 +/- 5 V 25 °C analogue input circuit
0,0016 1...5 V 25 °C analogue input circuit
0,0016 4...20 mA 25 °C analogue input circuit
0,003 +/- 20 mA 60 °C analogue input circuit
0,003 +/- 5 V 60 °C analogue input circuit
0,003 1...5 V 60 °C analogue input circuit
0,003 4...20 mA 60 °C analogue input circuit
+/- 0.35 % 0...20 mA 25 °C analogue output
+/- 0.70 % +/- 10 V 60 °C analogue output
+/- 0.70 % 0...20 mA 60 °C analogue output
0,0008 +/- 10 V 25 °C analogue input circuit
0,0015 +/- 10 V 60 °C analogue input circuit
0,0016 +/- 20 mA 25 °C analogue input circuit
0,0016 +/- 5 V 25 °C analogue input circuit
0,0016 1...5 V 25 °C analogue input circuit
0,0016 4...20 mA 25 °C analogue input circuit
0,003 +/- 20 mA 60 °C analogue input circuit
0,003 +/- 5 V 60 °C analogue input circuit
0,003 1...5 V 60 °C analogue input circuit
0,003 4...20 mA 60 °C analogue input circuit
Input resistance
1 MOhm analogue input circuit
4 kOhm discrete input
4 kOhm discrete input
input voltage limits
< 30 V
Discrete input voltage
24 V DC
Local signalling
8 LEDs for channel status
Discrete input number
4 conforming to IEC 1131-2 Type 1
Net weight
0.24 kg
Discrete output type
Transistor
Discrete output voltage
<= 30 V
voltage state 1 guaranteed
11...30 V for discrete input
Input overvoltage protection
-50…50 V <= 100 s analogue input circuit
-30…30 V 24 V analogue input circuit
-30…30 V 24 V analogue input circuit
depth
47.5 mm
Output overload protection
With discrete output
voltage state 0 guaranteed
-3...5 V for discrete input
electrical connection
2 connectors for removable terminal blocks
Isolation voltage
500 V (duration = 1 min) between analogue I/O and operating voltage
500 V (duration = 1 min) between operating voltage and I/O from ground
500 V (duration = 1 min) between operating voltage and I/O from ground
Output load
<= 600 Ohm 0...20 mA analogue output
>= 3 kOhm +/- 10 V analogue output
>= 3 kOhm +/- 10 V analogue output
Operating rate
100 cyc/s resistive 1 A discrete output
1000 cyc/h inductive 1 A discrete output
8 cyc/s tungsten <2.4 W discrete output
1000 cyc/h inductive 1 A discrete output
8 cyc/s tungsten <2.4 W discrete output
Resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
conversion time
1 ms analogue output
10 ms analogue input circuit
10 ms analogue input circuit
Resistance to electromagnetic fields
10 V/m 80...1000 MHz conforming to IEC 801-3
Environment
Ambient air temp for storage/transportation
-40…85 °C
operating altitude
<= 5000 m
Range of product
Modicon Momentum automation platform
ambient air temperature for operation
0…60 °C
relative humidity
95 % without condensation
protective treatment
TC
