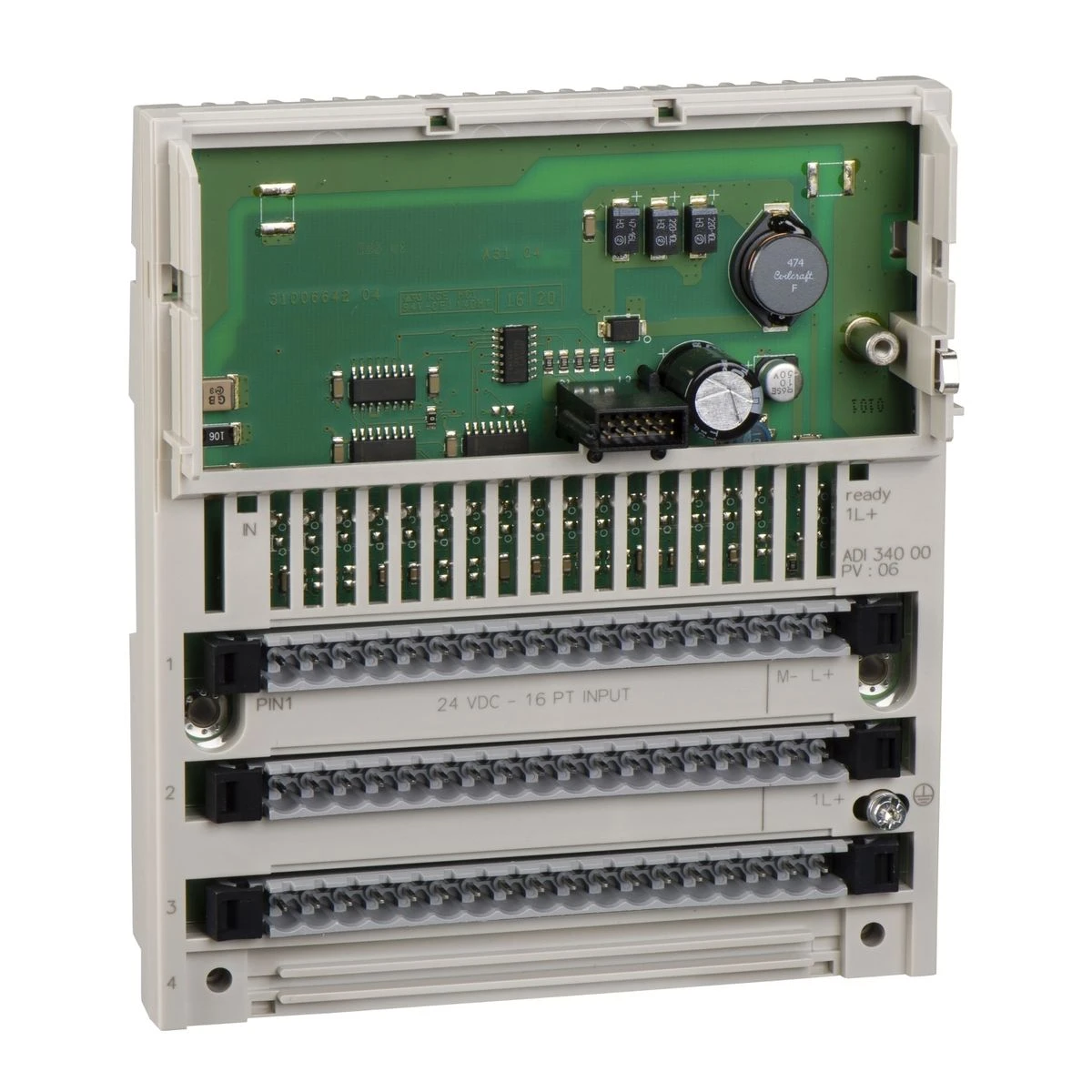

170ADI34000C - Discrete input module Modicon Momentum Conformal coating 16 Input 24 V DC - Schneider Electric
Expected in 2-4 weeks
615,75 €
Text About:
Discrete input module Modicon Momentum Conformal coating 16 Input 24 V DC - Schneider Electric
SPECIFICATIONS
Main
Group of channels
1 group of 16 inputs
Complementary
Product certifications
CSA
UL
FM Class 1 Division 2
UL
FM Class 1 Division 2
response time
2.2 ms from state 0 to state 1
3.3 ms from state 1 to state 0
3.3 ms from state 1 to state 0
Handle front plate colour
141.5 mm
Product or component type
Discrete inputs base DC
Current consumption
<= 250 mA at 24 V DC
current state 0 guaranteed
<= 1.2 mA
marking
CE
current state 1 guaranteed
>= 2.5 mA
Discrete input logic
Positive
width (w)
125 mm
Input resistance
4 kOhm
input voltage limits
24 V
Discrete input voltage
24 V DC
Local signalling
16 LEDs for channel status
Discrete input number
16 conforming to IEC 1131-2 Type 1
Net weight
0.19 kg
Isolation between channels and bus
500 V AC
voltage state 1 guaranteed
11...30 V
Power dissipation
3 W typical
5 W maximum
5 W maximum
depth
47.5 mm
voltage state 0 guaranteed
-3...5 V
Resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields
10 V/m 80...1000 MHz conforming to IEC 801-3
Voltage range
- 3...30 V
Environment
Ambient air temp for storage/transportation
-40…85 °C
operating altitude
<= 5000 m
Range of product
Modicon Momentum automation platform
ambient air temperature for operation
0…60 °C
relative humidity
95 % without condensation
protective treatment
Conformal coating Humiseal 1A33
TC
TC
