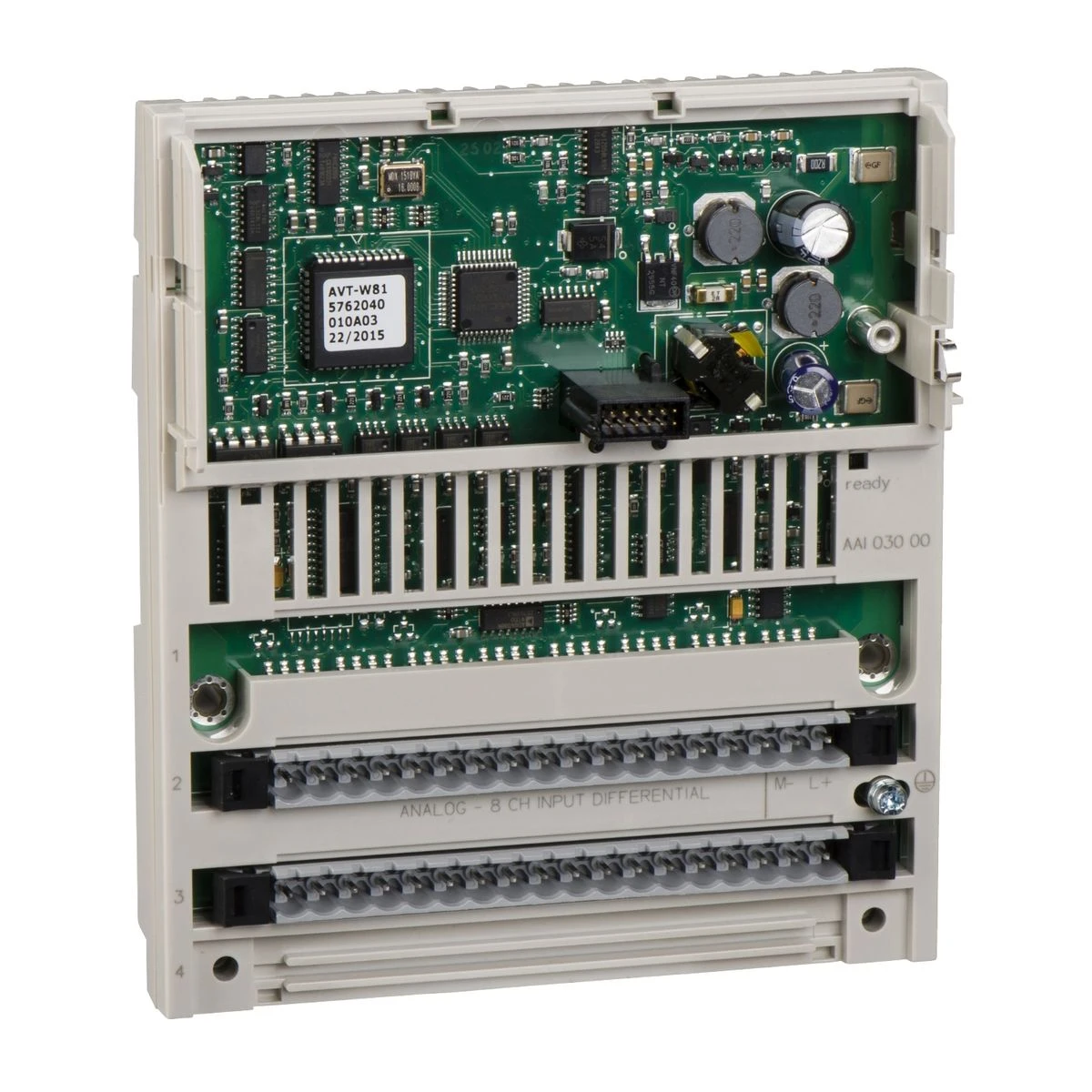

170AAI03000C - Distributed analog input Modicon Momentum Conformal coating 8 Input - Schneider Electric

Expected in 2-4 weeks

1 684,45 € excl. VAT

2 055,03 € incl. VAT

Text About:

Distributed analog input Modicon Momentum Conformal coating 8 Input - Schneider Electric

In cart

2 055,03 €

SPECIFICATIONS

Main

reverse polarity protection Internal

Complementary

Absolute accuracy error +/- 0.13 % full scale 25 °C +/- 20 mA
+/- 0.19 % full scale 60 °C +/- 20 mA
+/- 0.21 % full scale 25 °C +/- 5 V
+/- 0.26 % full scale 60 °C +/- 5 V
+/- 0.27 % full scale 25 °C +/- 10 V
+/- 0.27 % full scale 25 °C 1...5 V
+/- 0.32 % full scale 25 °C 4...20 mA
+/- 0.32 % full scale 60 °C +/- 10 V
+/- 0.38 % full scale 60 °C 1...5 V
+/- 0.41 % full scale 60 °C 4...20 mA

Product certifications FM Class 1 Division 2
UL
CSA

Analogue input range +/- 20 mA 14 bits + sign 250 kOhm
4...20 mA 15 bits + sign 250 kOhm
+/- 10 V 14 bits + sign > 0.1 kOhm
+/- 5 V 14 bits + sign > 0.1 kOhm
1...5 V 15 bits + sign > 0.1 kOhm

data formats Full 16 bits signed

Handle front plate colour 125 mm

Product or component type Analogue input base

marking CE

Analogue input number 8

Common mode rejection > 80 dB between channels to ground

Analogue input type Differential

width (w) 141.5 mm

Local signalling 8 LEDs for channel status

External power requirement < 382 mA DC
20.4...28.8 V DC
24 V DC

Net weight 0.215 kg

Isolation between channels +/- 200 V DC for 1 minute

Isolation between channels and bus 500 V for 1 minute

Isolation between channels and ground 500 V AC for 1 minute

depth 47.5 mm

electrical connection 2 connectors for removable terminal blocks

Permissible common mode voltage 100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground

Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2

conversion time 12 ms 8

Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3

Environment

Ambient air temp for storage/transportation -40…85 °C

operating altitude <= 5000 m

Range of product Modicon Momentum automation platform

ambient air temperature for operation 0…60 °C

standards IEC 1131
EN 50081-2

relative humidity 95 % without condensation

protective treatment TC
Conformal coating Humiseal 1A33
