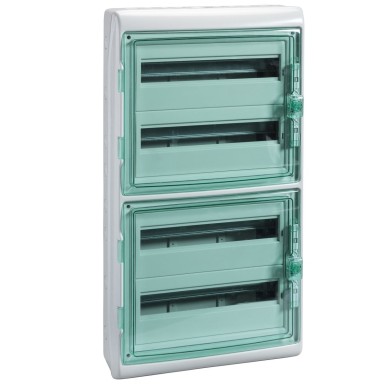

13968 - Kaedra - enclosure for modular equipment - 448 x 842 mm - 72 modules - Schneider Electric

Expected in 2-4 weeks EAN: 3303430139683

EAN: 3303430139683

139,90 € excl. VAT

170,67 € incl. VAT

Text About:

Kaedra - enclosure for modular equipment - 448 x 842 mm - 72 modules - Schneider Electric

In cart

170,67 €

SPECIFICATIONS

Main

accessories included with the box 2 supports de bornier
2 borniers 32 trous
4 kits de repérage
4 brides fixation câblage

Range Kaedra

extensibility type Coffret pour appareillage modulaire

type of product or equipment Coffret étanche

solid frame type Sans châssis plein

Complementary

electrical insulation class Classe II
Double isolation

departures from the splitter terminal 32 x 10 mm²
32 x 16 mm²

Handle front plate colour 842 mm

case material Polymère auto-extinguible

in rated operational current 160 A

installation of the box En saillie

number of auto pg iso circuit breakers 17

width (w) 448 mm

number of terminals 2 avec 32 départs

Colour Porte: vert transparent
Habillage: gris clair (RAL 7035)

number of 18 mm modules per row 18

number of horizontal rows 4

total number of 18mm modules 72

internal depth 88 mm

target country France

depth 160 mm

power dissipation in w 89 W

front face type Réversible
Transparent

track type DIN

optional locks Verrou sécurité en option

equipment provided 4 kit de marquage
4 bride d'attache
2 bloc terminal à 32 trous
2 support de bloc terminal

Environment

environmental characteristics (uv) Résistant aux UV: class 3 se conformer à ISO 4582:2010
Test de dégradation aux ultraviolets se conformer à ISO 4892-2:2013

ip degree of protection IP65 se conformer à CEI 60529

overvoltage category II

standards EN 50102
CEI 670
EN 50262
CEI 60529
CEI 60439-3

fire resistance 750 °C se conformer à CEI 60695-2-1

shock resistance ik IK09 se conformer à EN 50102

operating ambient air temperature -25…60 °C
