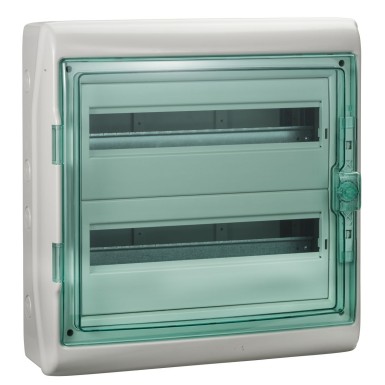

13965 - Kaedra - enclosure for modular equipment - 448 x 460 mm - 36 modules - Schneider Electric

Expected in 2-4 weeks EAN: 3303430139652

EAN: 3303430139652

85,93 € excl. VAT

104,84 € incl. VAT

Text About:

Kaedra - enclosure for modular equipment - 448 x 460 mm - 36 modules - Schneider Electric

In cart

104,84 €

SPECIFICATIONS

Main

accessories included with the box 2 brides fixation câblage
2 kits de repérage
1 bornier 32 trous
1 support bloc connexion

Range Kaedra

extensibility type Coffret pour appareillage modulaire

type of product or equipment Coffret étanche

solid frame type Sans châssis plein

Complementary

electrical insulation class Double isolation
Classe II

departures from the splitter terminal 16 x 10 mm²
16 x 16 mm²

Handle front plate colour 460 mm

case material Polymère auto-extinguible

in rated operational current 90 A

installation of the box En saillie

number of auto pg iso circuit breakers 17

width (w) 448 mm

number of terminals 1 avec 32 départs

Colour Porte: vert transparent
Habillage: gris clair (RAL 7035)

number of 18 mm modules per row 18

number of horizontal rows 2

total number of 18mm modules 36

internal depth 88 mm

target country France

depth 160 mm

front face type Réversible
Transparent

track type DIN

optional locks Verrou sécurité en option

equipment provided 2 kit de marquage
2 bride d'attache
1 support de bloc terminal
1 bloc terminal à 32 trous

Environment

environmental characteristics (uv) Résistant aux UV: class 3 se conformer à ISO 4582:2010
Test de dégradation aux ultraviolets se conformer à ISO 4892-2:2013

ip degree of protection IP65 se conformer à CEI 60529

operating ambient temperature -25…60 °C

overvoltage category II

standards CEI 60439-3
EN 50262
CEI 60529
CEI 670
EN 50102

fire resistance 750 °C se conformer à CEI 60695-2-1

shock resistance ik IK09 se conformer à EN 50102
