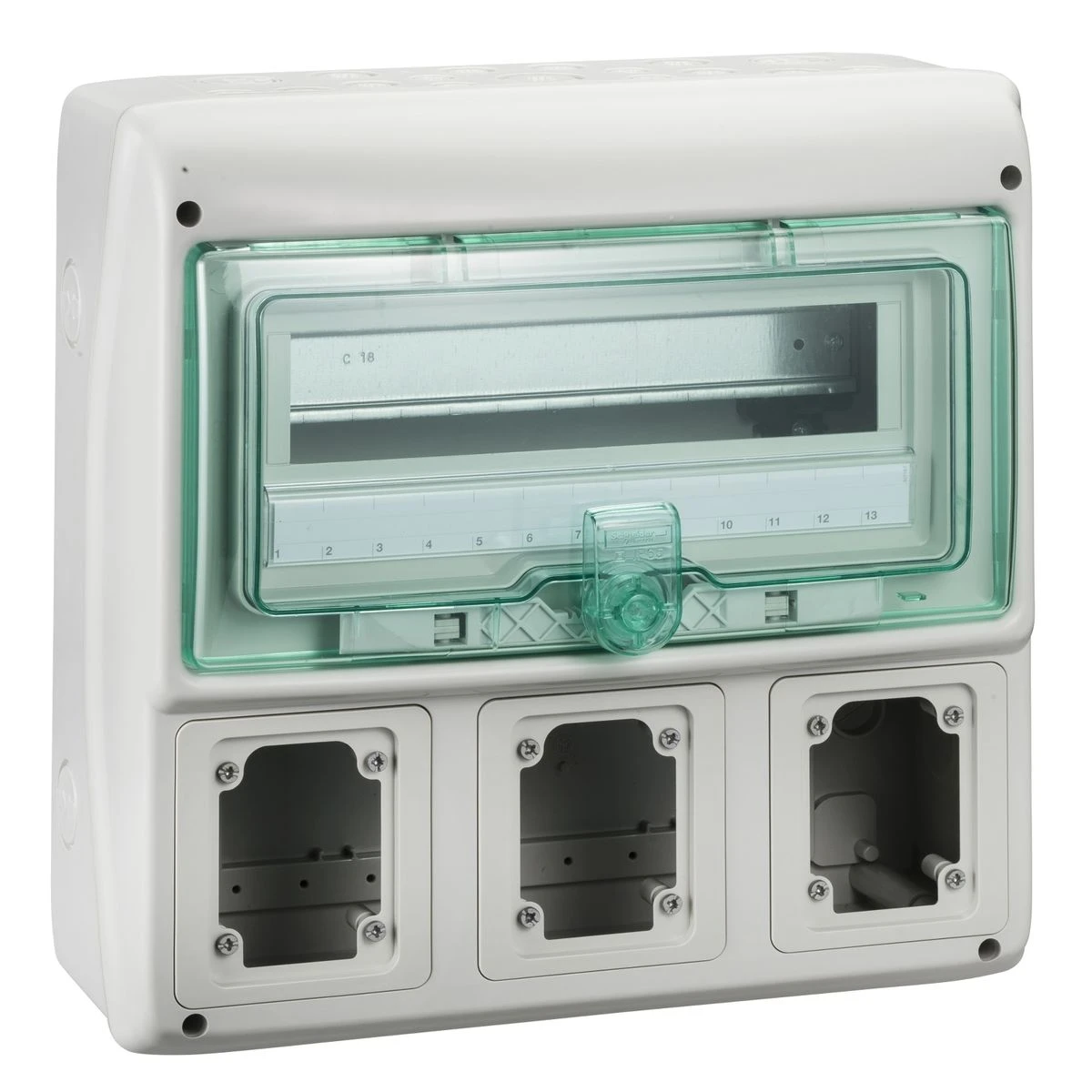

13180 - Kaedra for power outlet 3 openings 1 x 12 modules 340 x 335 mm - Schneider Electric

Expected in 2-4 weeks

114,93 € excl. VAT

140,22 € incl. VAT

Text About:

Kaedra for power outlet 3 openings 1 x 12 modules 340 x 335 mm - Schneider Electric

In cart

140,22 €

SPECIFICATIONS

Main

Accessories included with enclosure 1 plate for push-button controls
3 plates for 65 x 85 power outlets
2 wiring straps

Range Kaedra

Complementary

Distribution block outgoers 4 x 10 mm²
4 x 16 mm²

electrical insulation class Double insulation
Class II

[in] rated current 63 A

Base dimension 90 x 100 mm

Enclosure type Enclosure for power outlet

Handle front plate colour 335 mm

Product or component type Weatherproof enclosure

Locking options description Optional keylock

Enclosure material Housing: self-extinguishing polymer

width (w) 340 mm

Colour Door: transparent green
Enclosure: light grey (RAL 7035)

Ik degree of protection IK09 conforming to EN 50102

number of 18 mm modules per row 12

Mounting plate description Without mounting plate

Net weight 2.1 kg

number of plates 1 for push-button controls
3 for 65 x 85 power outlets

number of horizontal rows 1

internal depth 91 mm

depth 160 mm

power dissipation in w 28 W

Type of rail DIN

Number of openings of interface 3

Number of pre-cutouts pg iso 17

Number of terminal blocks 1 with 8 outgoers

Enclosure mounting Surface

Provided equipment 2 wiring strap
1 plate for push-button control
3 plate for 65 x 85 power outlet

Type of front cover Transparent

Total number of 18 mm modules 12

Environment

environmental characteristics (uv) UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013

ip degree of protection IP65 conforming to IEC 60529

ambient air temperature for operation -25…40 °C

overvoltage category II

standards IEC 60439-3
IEC 670
EN 62262
IEC 60695-2-1
EN 50262
IEC 60529

fire resistance 650 °C conforming to IEC 60695-2-1
