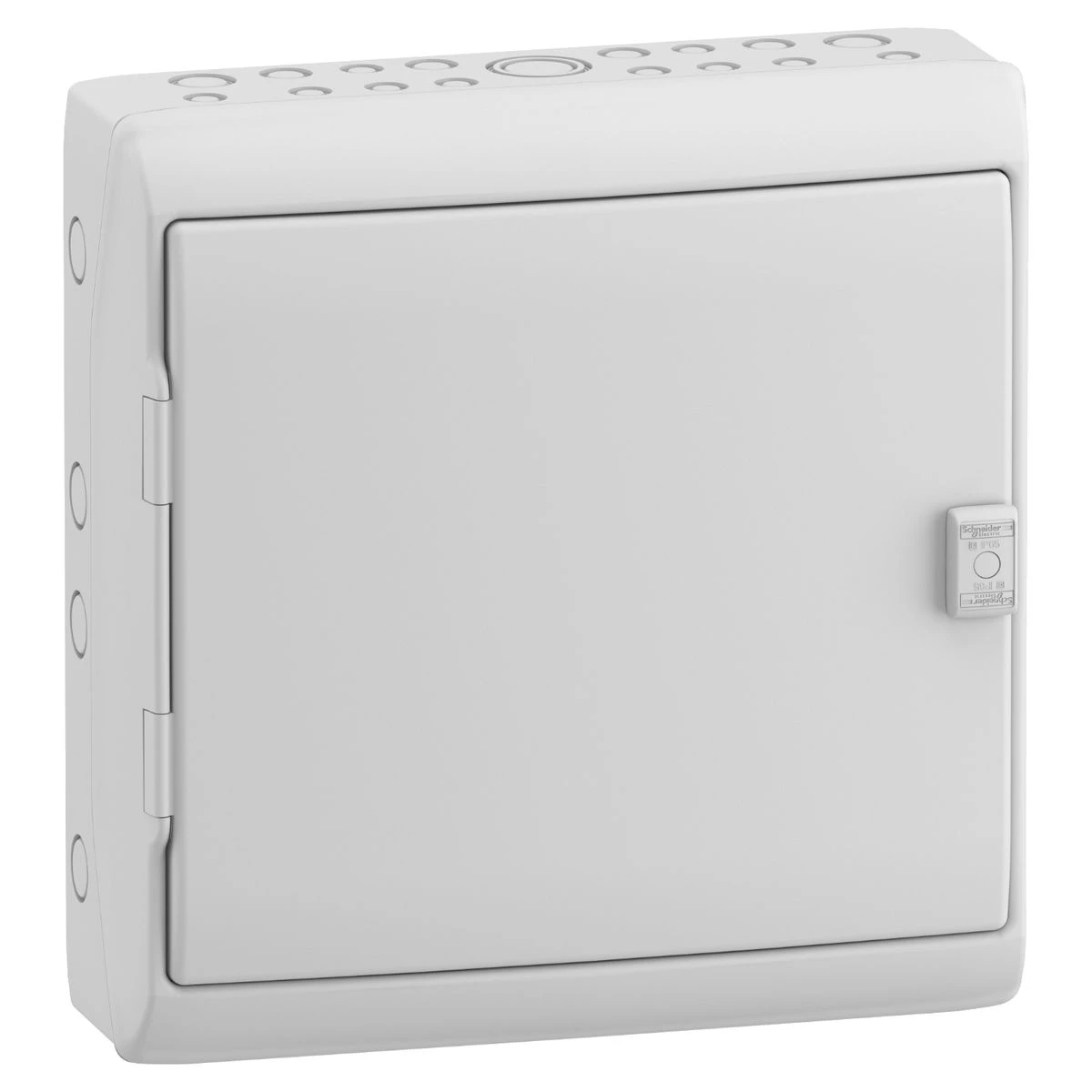

13172 - Kaedra versatile 448 x 460 mm 17 precutouts - Schneider Electric

Expected in 2-4 weeks

225,51 € excl. VAT

275,12 € incl. VAT

Text About:

Kaedra versatile 448 x 460 mm 17 precutouts - Schneider Electric

In cart

275,12 €

SPECIFICATIONS

Main

Range Kaedra

Complementary

electrical insulation class Class II
Double insulation

[in] rated current 90 A

Enclosure type Versatile enclosure

Handle front plate colour 460 mm

Product or component type Weatherproof enclosure

Locking options description Optional keylock

Enclosure material Self-extinguishing polymer

width (w) 448 mm

Colour Enclosure: light grey (RAL 7035)

Ik degree of protection IK09 conforming to EN 50102

Mounting plate description Slotted

internal depth 91 mm

depth 160 mm

Number of pre-cutouts pg iso 17

Enclosure mounting Surface

Targeted country France

Type of front cover Reversible
Opaque

Environment

environmental characteristics (uv) UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013

ip degree of protection IP65 conforming to IEC 60529

ambient air temperature for operation -25…60 °C

overvoltage category II

standards IEC 60529
IEC 670
IEC 60439-3
EN 50262
EN 50102

fire resistance 750 °C conforming to IEC 60695-2-1
