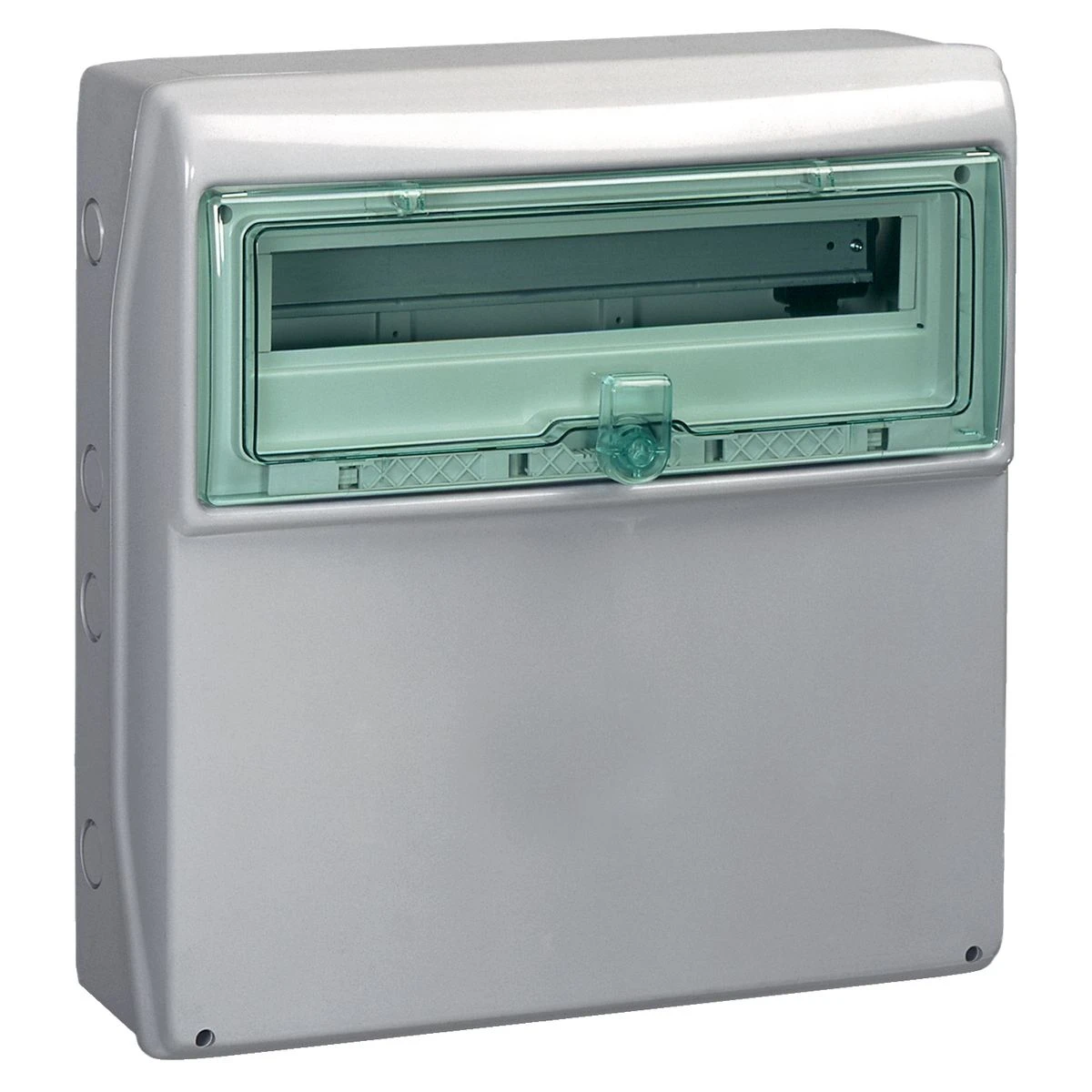

13168 - Kaedra versatile for power outlet 1 x 18+1 modules 448 x 460 mm - Schneider Electric

Expected in 2-4 weeks

80,39 € excl. VAT

98,07 € incl. VAT

Text About:

Kaedra versatile for power outlet 1 x 18+1 modules 448 x 460 mm - Schneider Electric

In cart

98,07 €

SPECIFICATIONS

Main

Range Kaedra

Complementary

electrical insulation class Double insulation
Class II

[in] rated current 90 A

Enclosure type Versatile enclosure for power outlet

Handle front plate colour 460 mm

Product or component type Weatherproof enclosure

Locking options description Optional keylock

Enclosure material Self-extinguishing polymer

width (w) 448 mm

Colour Door: transparent green
Enclosure: light grey (RAL 7035)

Ik degree of protection IK09 conforming to EN 50102

number of 18 mm modules per row 18

Mounting plate description Without mounting plate

number of horizontal rows 1

internal depth 91 mm

depth 160 mm

power dissipation in w 28 W

Type of rail DIN

Number of pre-cutouts pg iso 17

Enclosure mounting Surface

Targeted country France

Type of front cover Transparent

Total number of 18 mm modules 18

Environment

environmental characteristics (uv) UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013

ip degree of protection IP65 conforming to IEC 60529

ambient air temperature for operation -25…60 °C

overvoltage category II

standards EN 50102
IEC 60439-3
IEC 60529
IEC 670
EN 50262

fire resistance 750 °C conforming to IEC 60695-2-1
