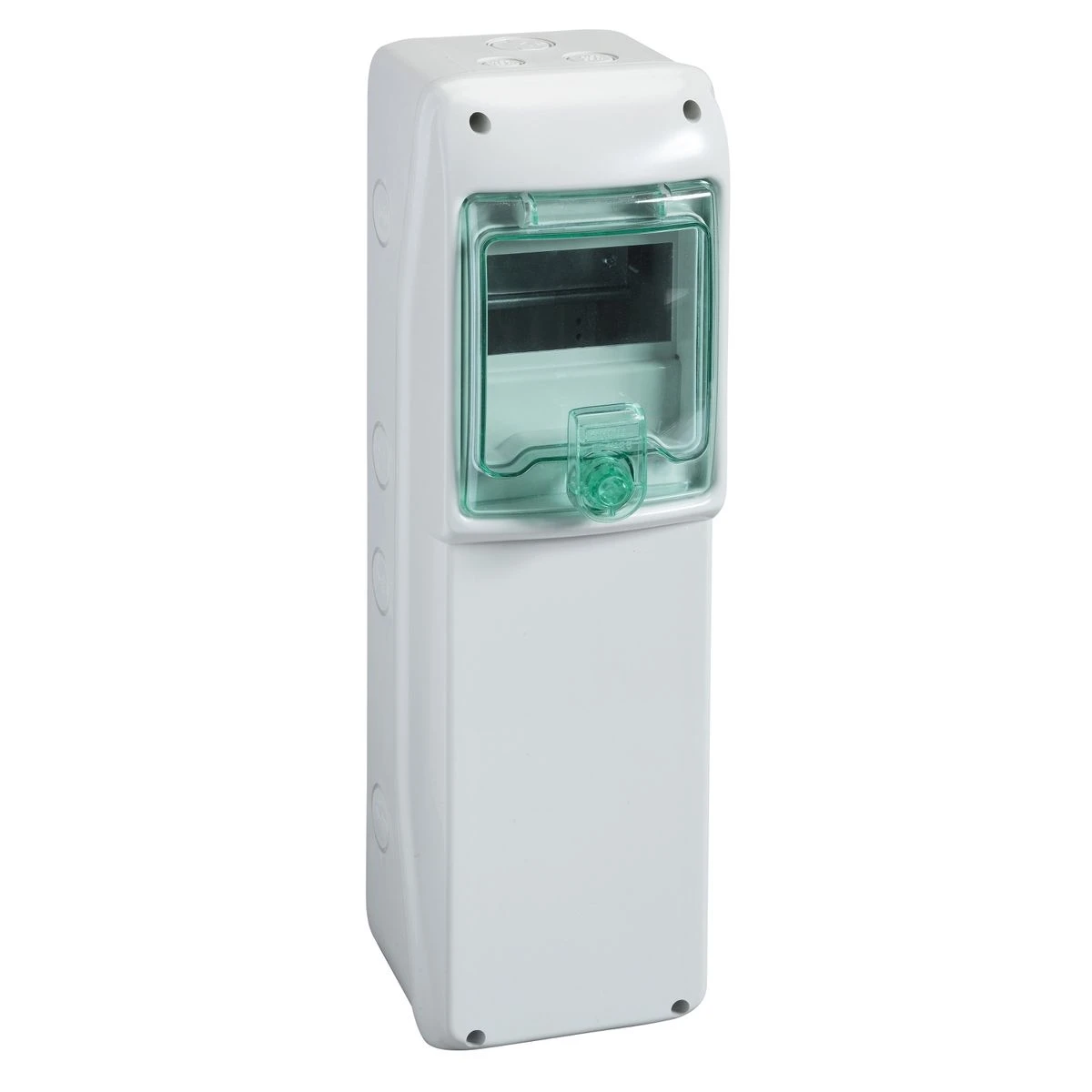

13164 - Kaedra versatile for power outlet 1 x 5 modules 138 x 460 mm - Schneider Electric

Expected in 2-4 weeks

69,10 €

Text About:

Kaedra versatile for power outlet 1 x 5 modules 138 x 460 mm - Schneider Electric

In cart

69,10 €

SPECIFICATIONS

Main

Range Kaedra

Complementary

electrical insulation class Class II
Double insulation

[in] rated current 63 A

Enclosure type Versatile enclosure for power outlet

Handle front plate colour 460 mm

Product or component type Weatherproof enclosure

Locking options description Optional keylock

Enclosure material Self-extinguishing polymer

width (w) 138 mm

Colour Door: transparent green
Enclosure: light grey (RAL 7035)

Ik degree of protection IK09 conforming to EN 50102

number of 18 mm modules per row 5

Mounting plate description Without mounting plate

number of horizontal rows 1

internal depth 91 mm

depth 160 mm

power dissipation in w 12 W

Type of rail DIN

Number of pre-cutouts pg iso 3

Enclosure mounting Surface

Targeted country France

Type of front cover Transparent

Total number of 18 mm modules 5

Environment

environmental characteristics (uv) UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013

ip degree of protection IP65 conforming to IEC 60529

ambient air temperature for operation -25…60 °C

overvoltage category II

standards IEC 60529
EN 50102
IEC 670
IEC 60439-3
EN 50262

fire resistance 750 °C conforming to IEC 60695-2-1
