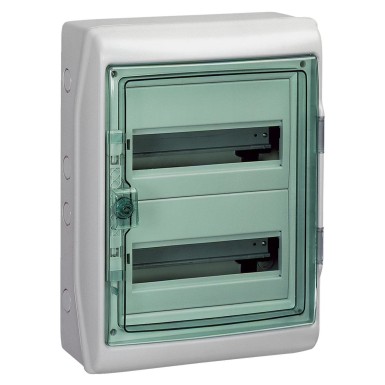

10342 - Kaedra - enclosure for modular equipment - 340 x 460 mm - 24 modules - Schneider Electric

Expected in 2-4 weeks EAN: 3303430139645

EAN: 3303430139645

122,59 € excl. VAT

149,56 € incl. VAT

Text About:

Kaedra - enclosure for modular equipment - 340 x 460 mm - 24 modules - Schneider Electric

In cart

149,56 €

SPECIFICATIONS

Main

accessories included with the box 1 bornier 22 trous
2 brides fixation câblage
2 kits de repérage
1 support bloc connexion

Range Kaedra

extensibility type Coffret pour appareillage modulaire

type of product or equipment Coffret étanche

solid frame type Perforé

Complementary

electrical insulation class Classe II
Double isolation

Handle front plate colour 460 mm

case material Polymère auto-extinguible

in rated operational current 63 A

installation of the box En saillie

number of auto pg iso circuit breakers 17

width (w) 340 mm

number of terminals 1 avec 22 départs

Colour Porte: vert transparent
Habillage: gris clair (RAL 7035)

number of 18 mm modules per row 12

number of horizontal rows 2

total number of 18mm modules 24

internal depth 88 mm

target country France

depth 160 mm

front face type Transparent
Réversible

track type DIN

optional locks Verrou sécurité en option

equipment provided 2 kit de marquage
2 bride d'attache
1 support de bloc terminal
1 bloc terminal à 22 trous

Environment

environmental characteristics (uv) Résistant aux UV: class 3 se conformer à ISO 4582:2010
Test de dégradation aux ultraviolets se conformer à ISO 4892-2:2013

ip degree of protection IP65 se conformer à CEI 60529

overvoltage category II

standards EN 50262
CEI 60529
CEI 670
EN 50102
CEI 60439-3

fire resistance 750 °C se conformer à CEI 60695-2-1

shock resistance ik IK09 se conformer à EN 50102

operating ambient air temperature -25…60 °C
